Integrated Power Module Connector End View C9
Integrated Power Module Connector End View C9

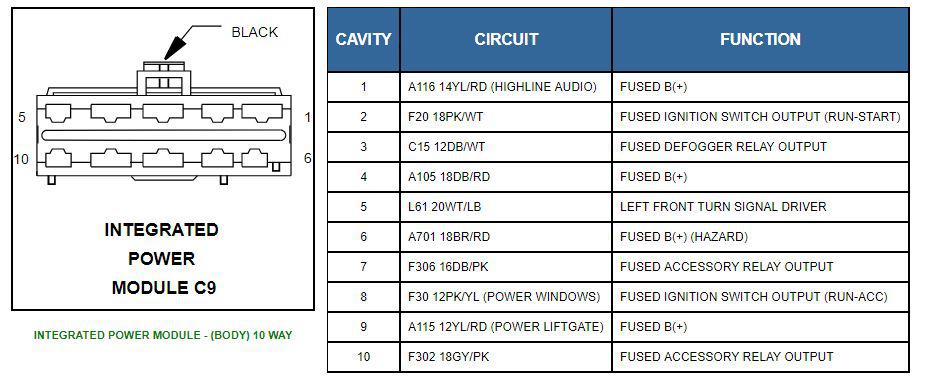

Fig 1:
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
