Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Front Of Engine Compartment

G00258386

Courtesy of DAIMLERCHRYSLER CORP.

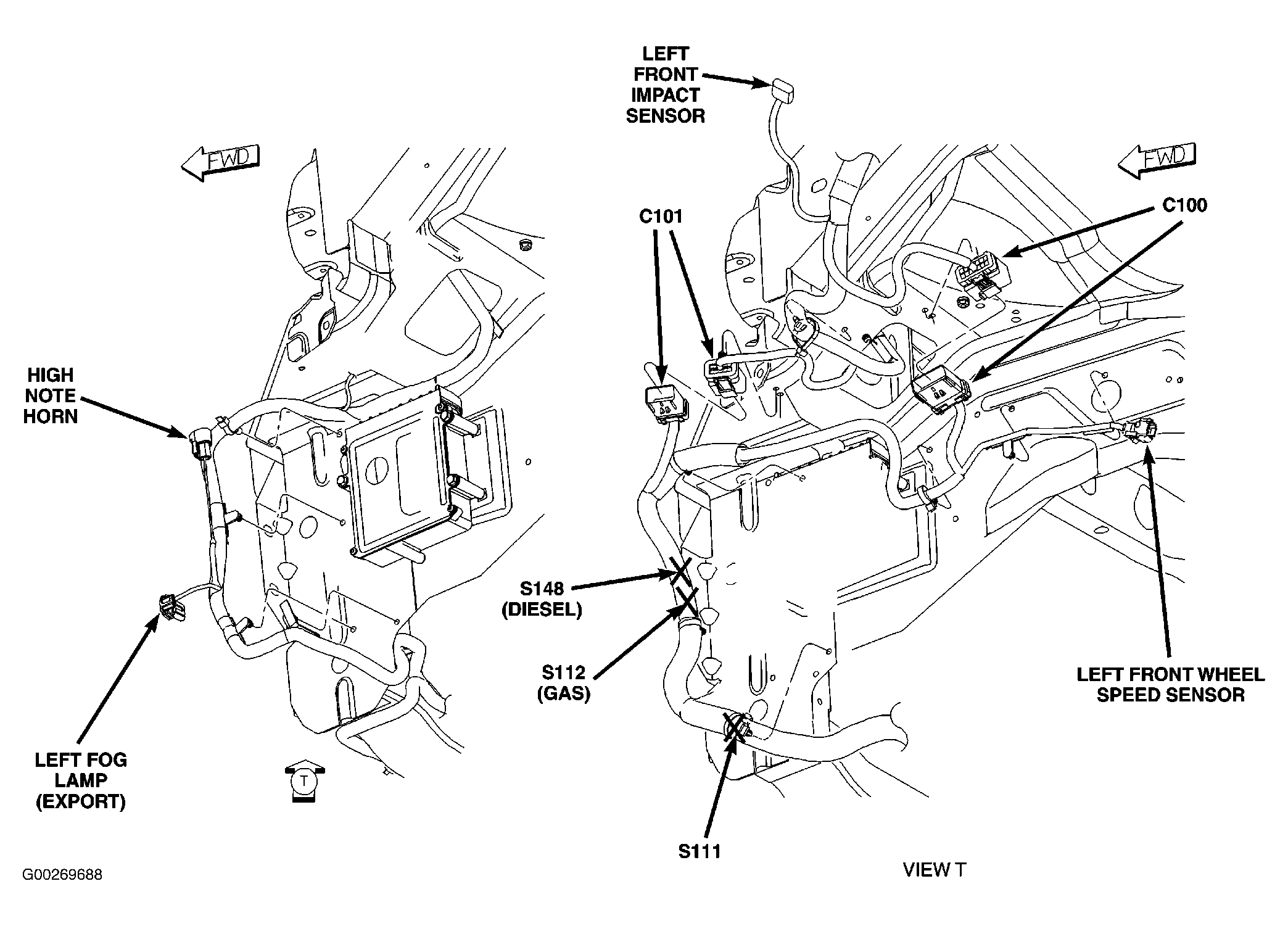

Fig 2: Left Fender Shield

G00269688

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Left Side Of Engine Compartment

G00258391

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Integrated Power Module

G00258392

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Right Front Wheel Housing

G00258393

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Right Side Of Engine (2.4L)

G00258396

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Left Side Of Engine (2.4L)

G00269689

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Right Side Of Engine (2.4L)

G00258398

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Automatic Transmission

G00258401

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Right Side Of Engine (3.3L & 3.8L)

G00418058

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Left Side Of Engine (3.3L & 3.8L)

G00267448

Courtesy of DAIMLERCHRYSLER CORP.

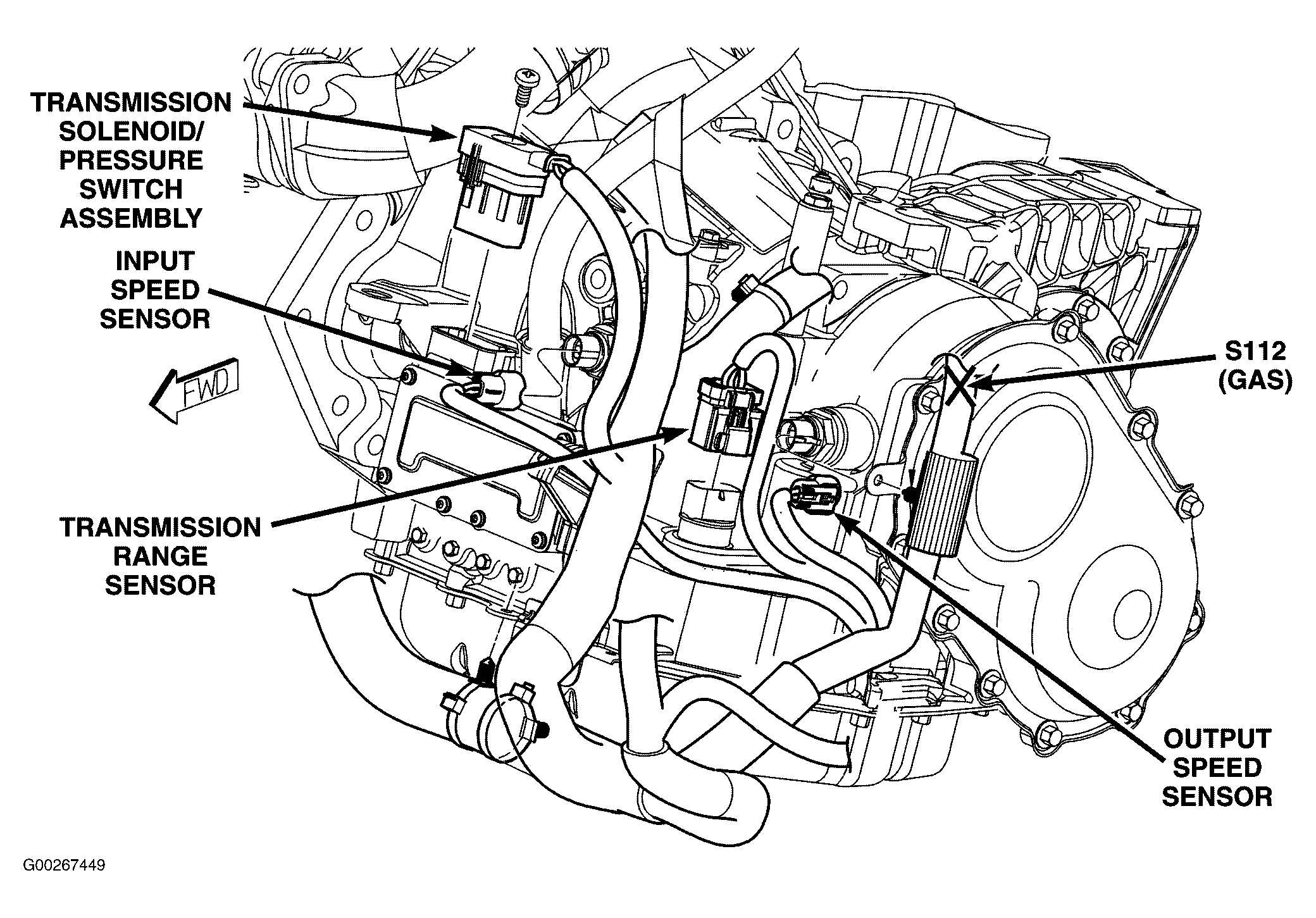

Fig 12: Left Side Of Automatic Transmission

G00267449

Courtesy of DAIMLERCHRYSLER CORP.

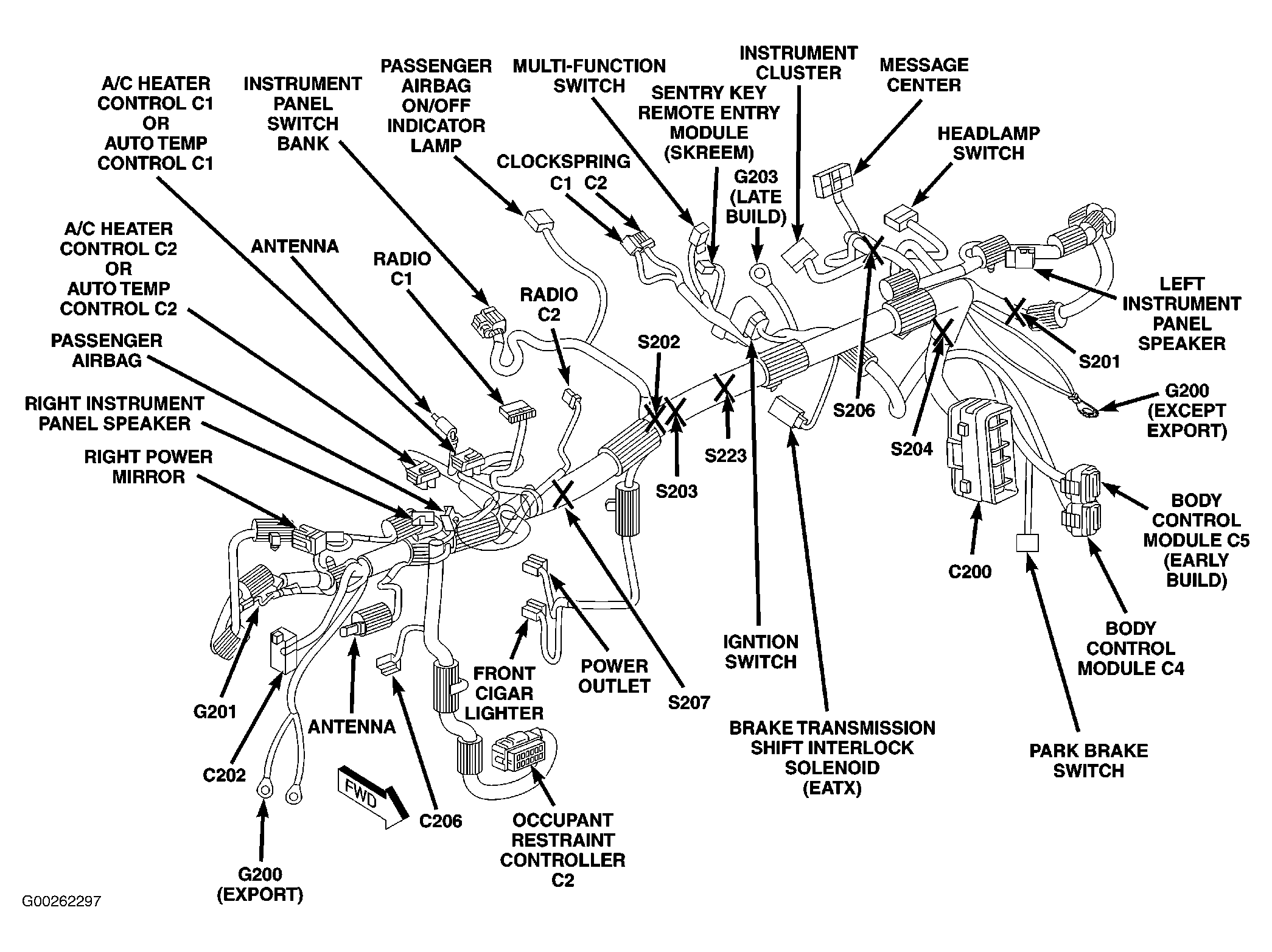

Fig 13: Instrument Panel Harness

G00262297

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Left Side Of Dash

G00258409

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Center Of Dash

G00258410

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Right Side Of Dash

G00262298

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Left Side Of Vehicle Floor

G00258413

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Right Side Of Vehicle

G00258412

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Rear Of Vehicle Floor

G00262299

Courtesy of DAIMLERCHRYSLER CORP.

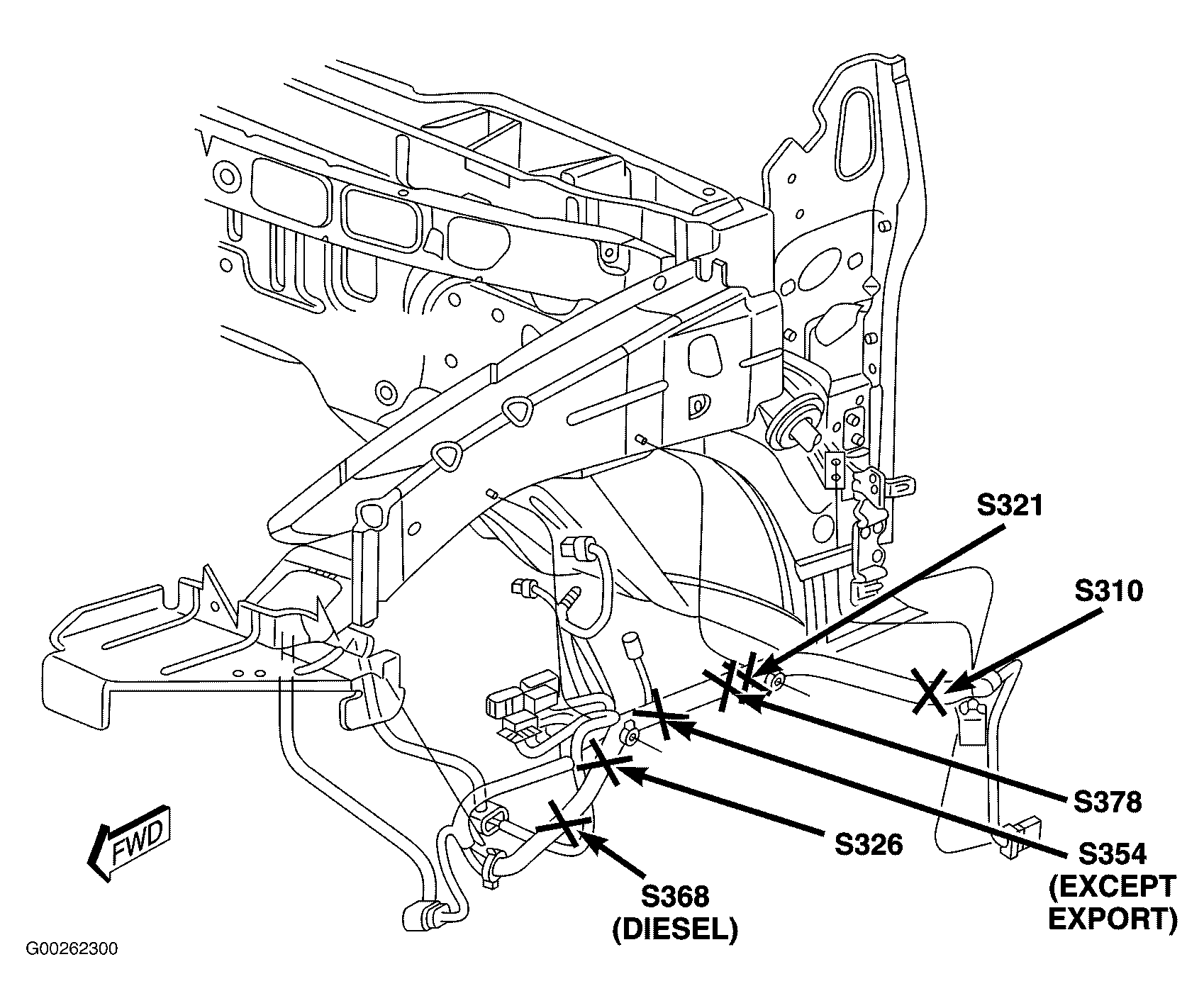

Fig 20: Left Front Frame

G00262300

Courtesy of DAIMLERCHRYSLER CORP.

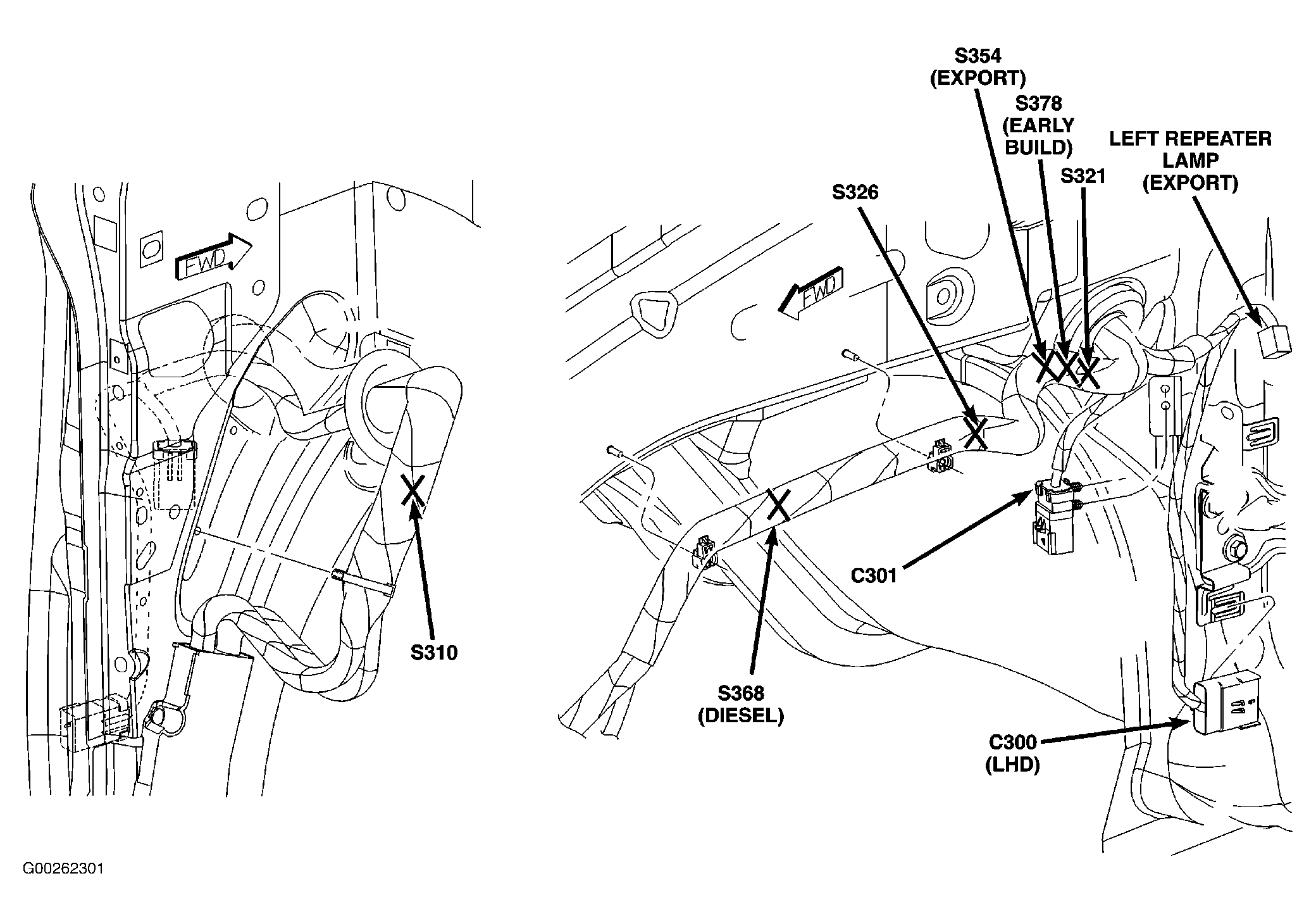

Fig 21: Left "A" Pillar

G00262301

Courtesy of DAIMLERCHRYSLER CORP.

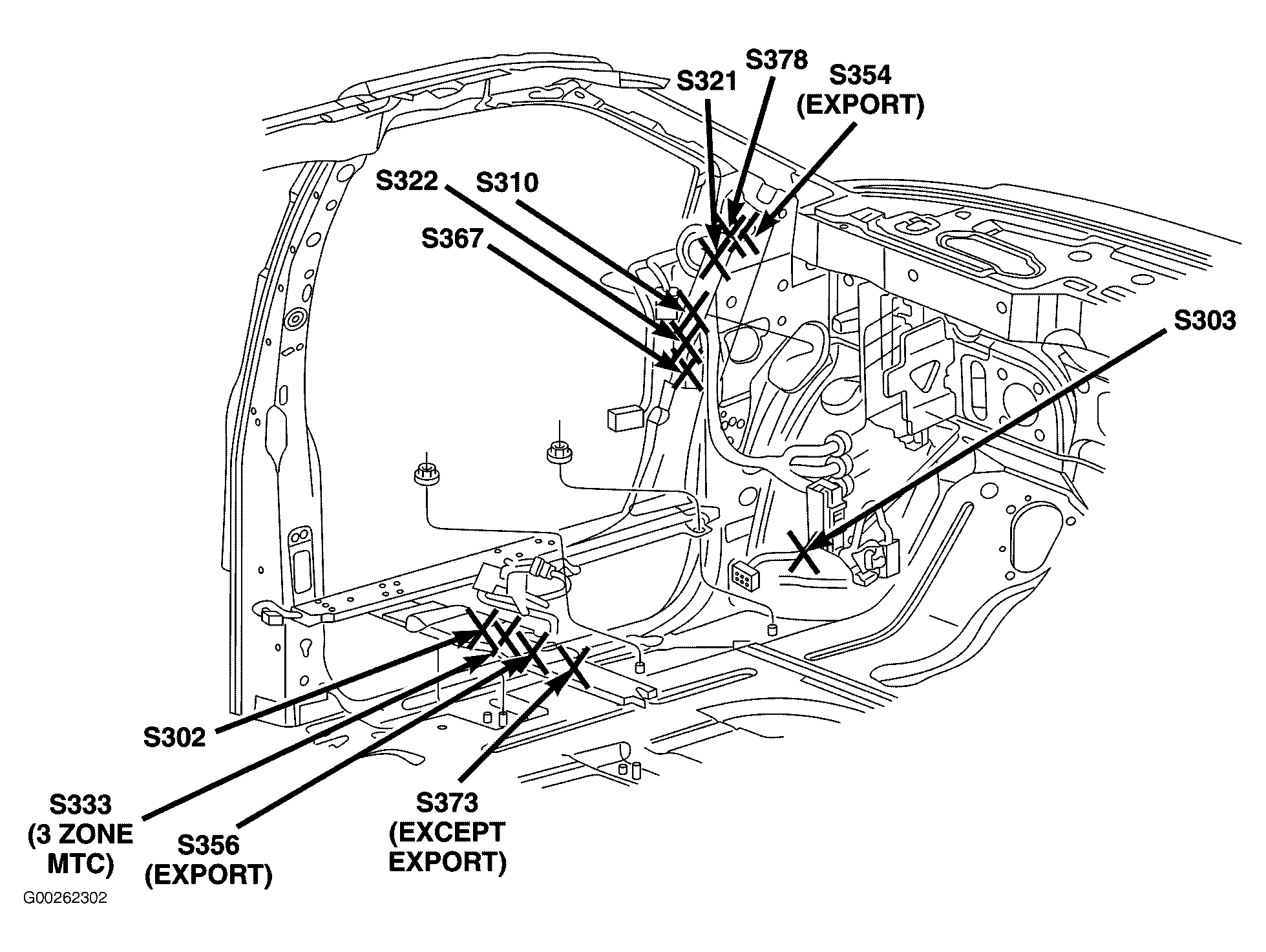

Fig 22: Left Front Of Cab

G00262302

Courtesy of DAIMLERCHRYSLER CORP.

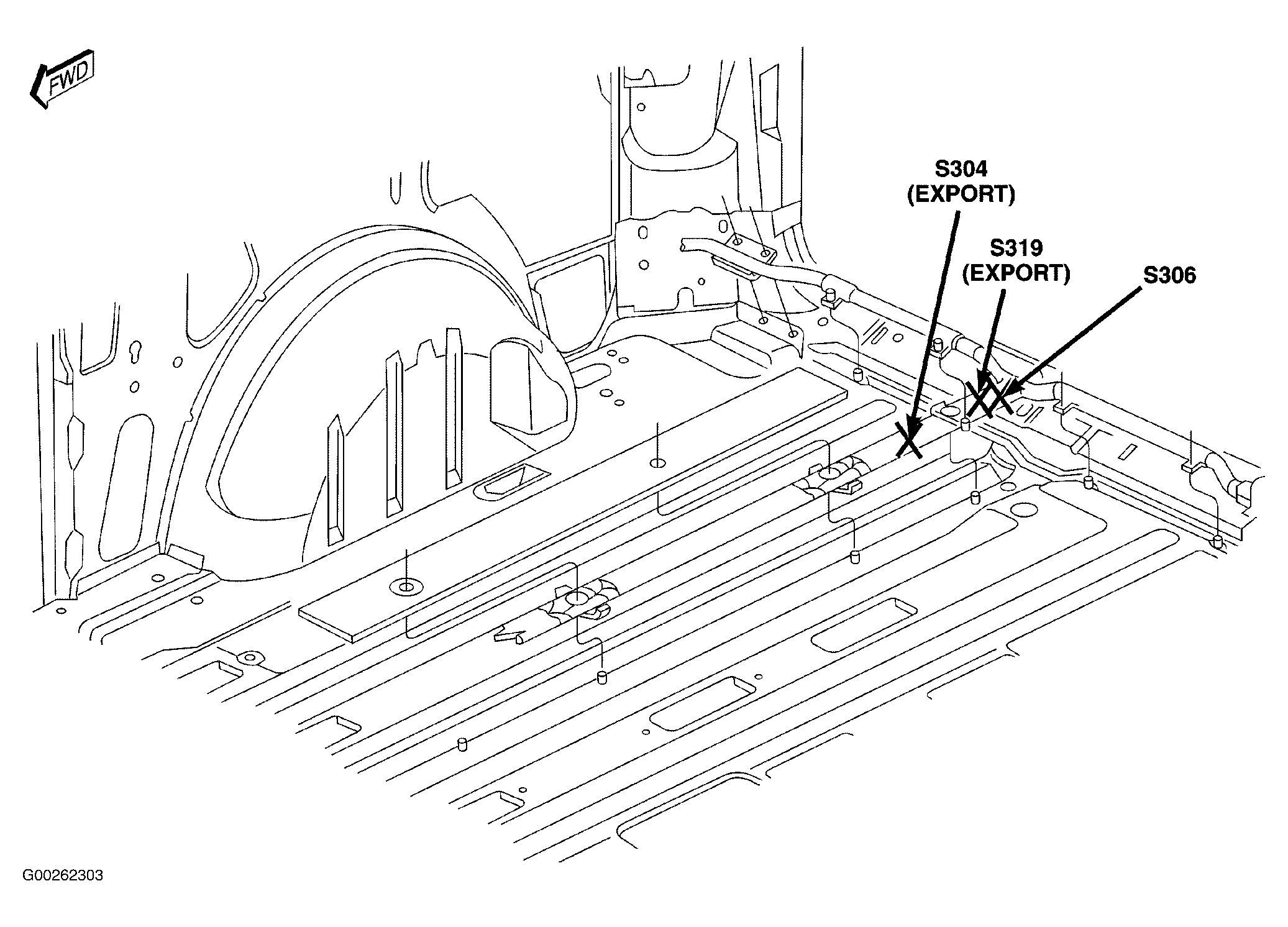

Fig 23: Rear Cargo Area

G00262303

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Right "B" & "C" Pillar

G00258421

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Left "B" Pillar

G00258420

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Left Kick Panel

G00262304

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Driver's Door

G00258425

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Passenger's Front Door

G00258424

Courtesy of DAIMLERCHRYSLER CORP.

Fig 29: Right Sliding Door

G00258426

Courtesy of DAIMLERCHRYSLER CORP.

Fig 30: Left Rear Cargo Area

G00258427

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Left Rear Body

G00262305

Courtesy of DAIMLERCHRYSLER CORP.

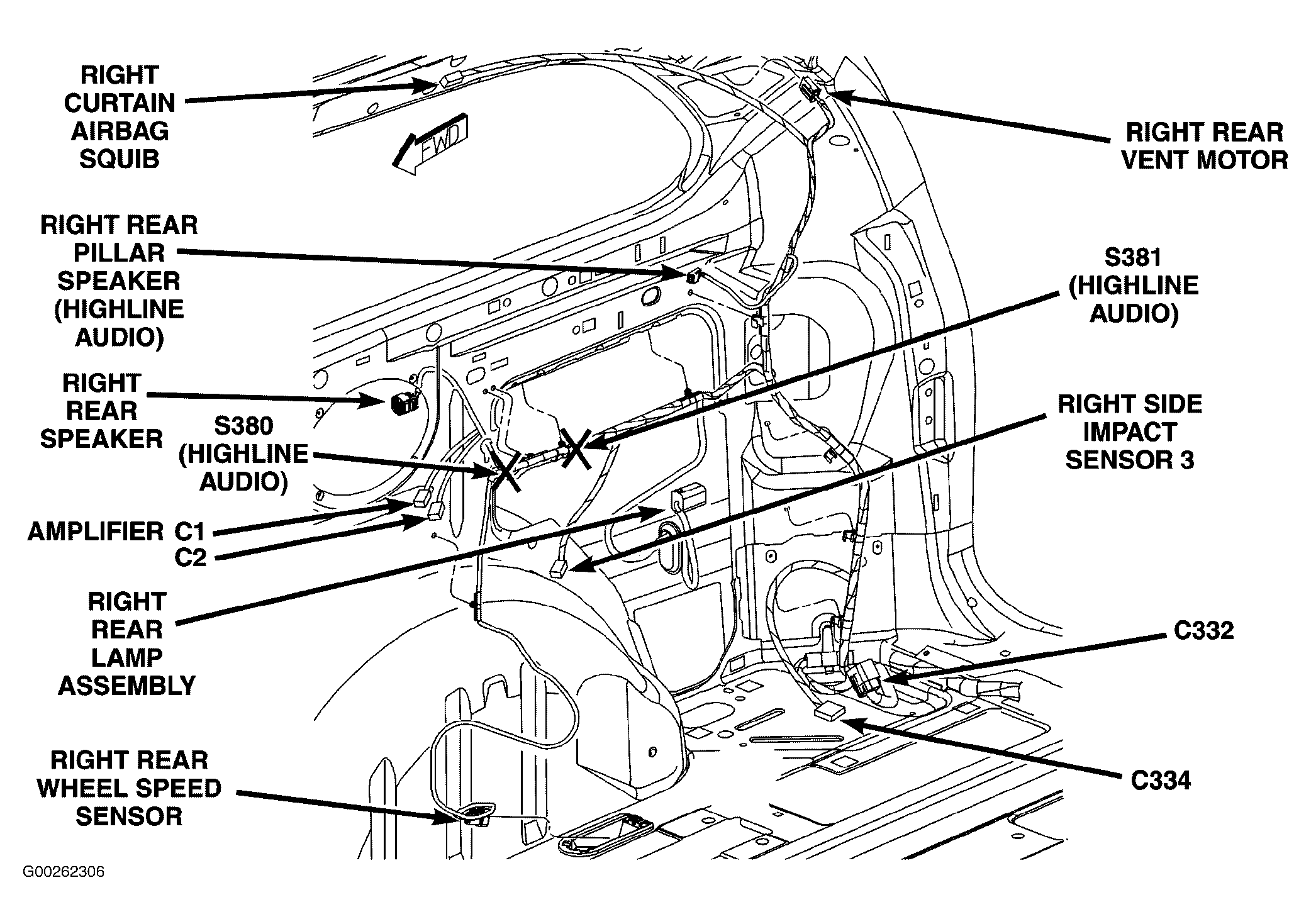

Fig 32: Right Quarterpanel

G00262306

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Liftgate

G00258432

Courtesy of DAIMLERCHRYSLER CORP.

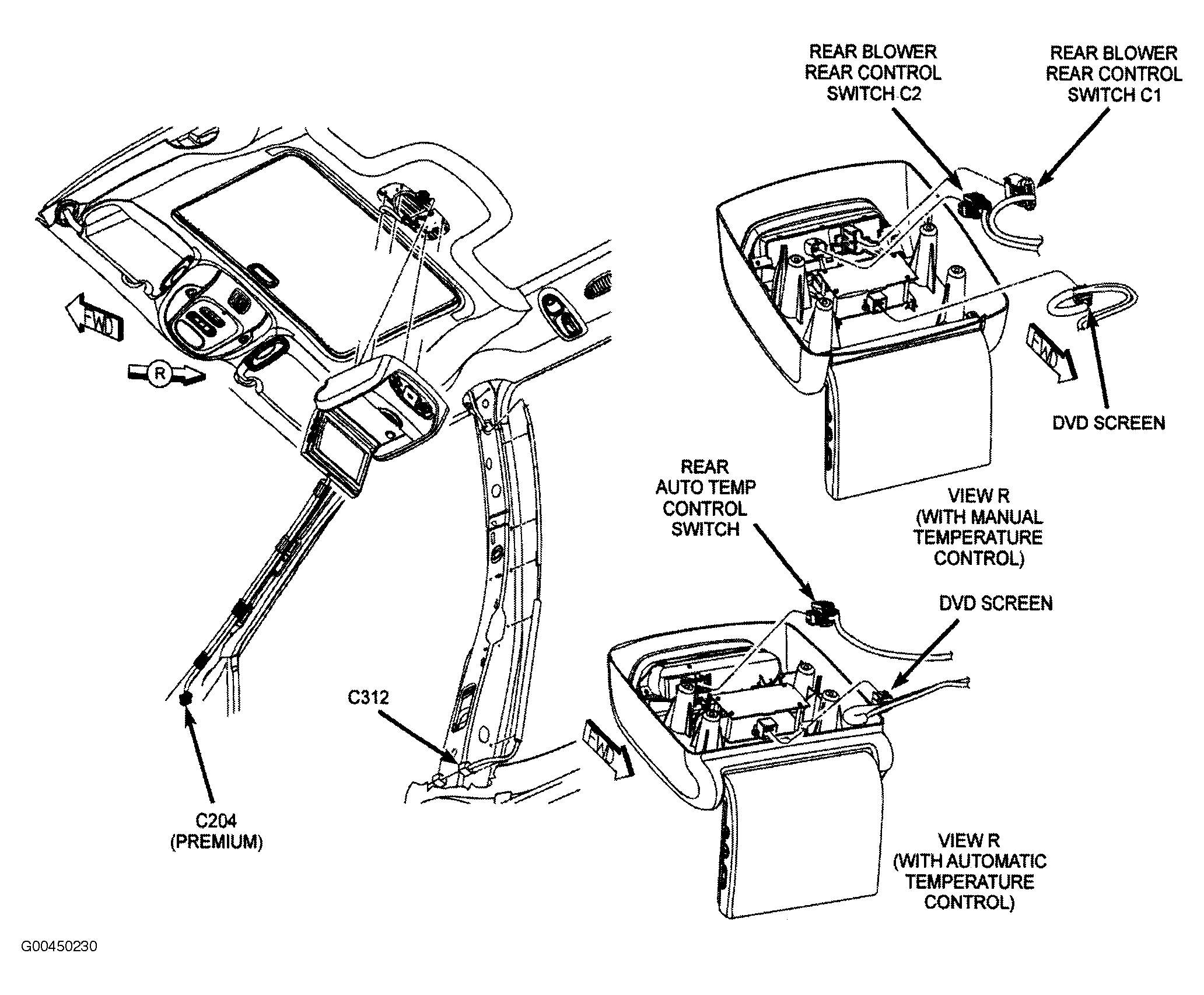

Fig 34: Headliner

G00450230

Courtesy of DAIMLERCHRYSLER CORP.

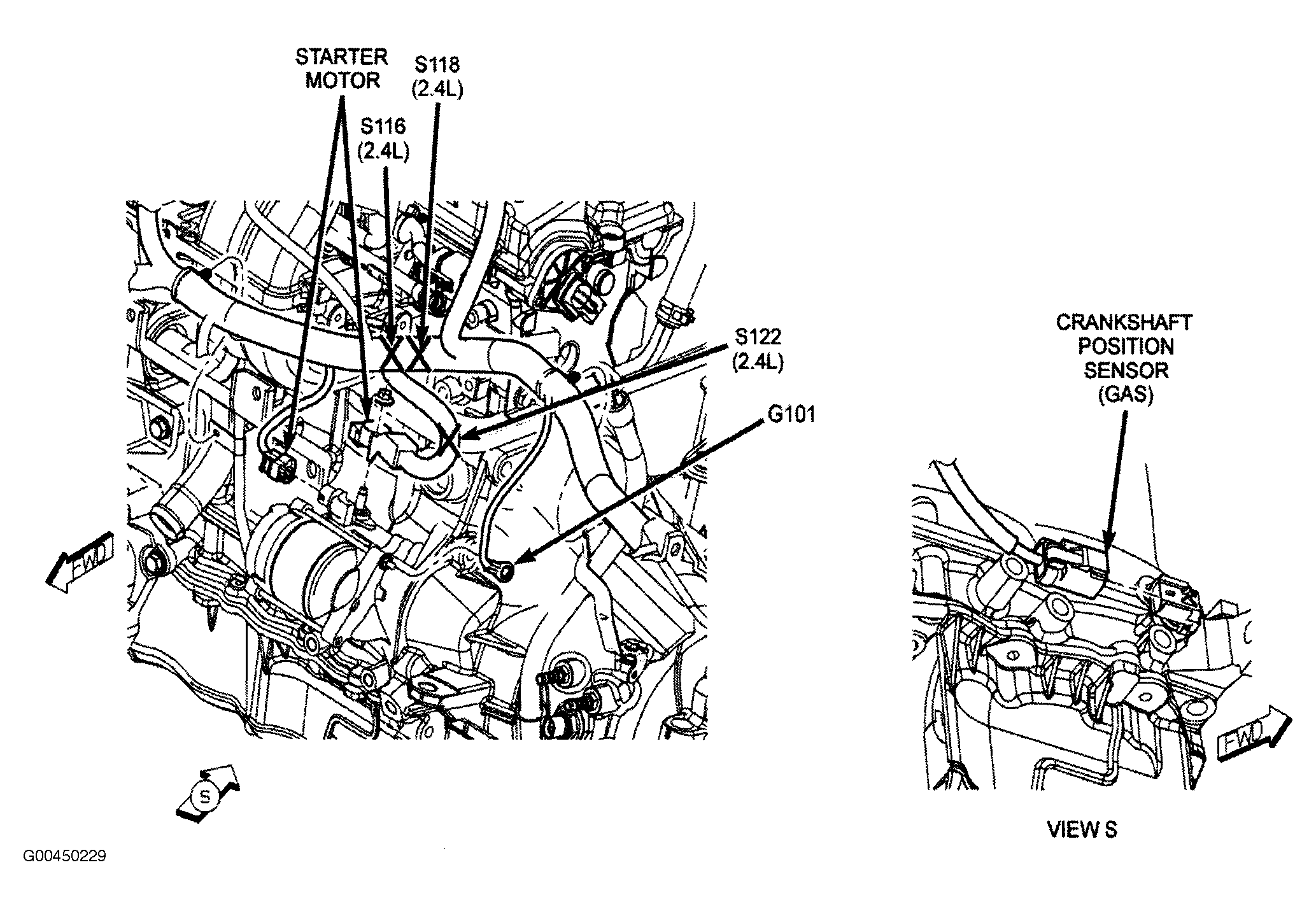

Fig 35: Left Side Of Engine (2.4L)

G00450229

Courtesy of DAIMLERCHRYSLER CORP.

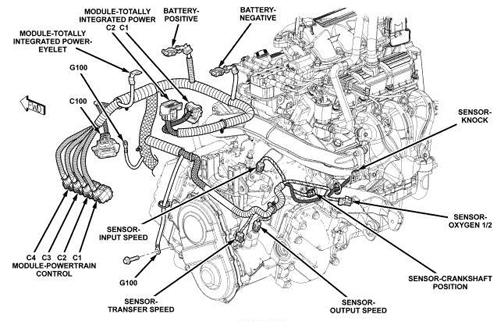

Fig 36: Rear Of Engine (3.3L & 3.8L)

G00458104

Courtesy of CHRYSLER LLC

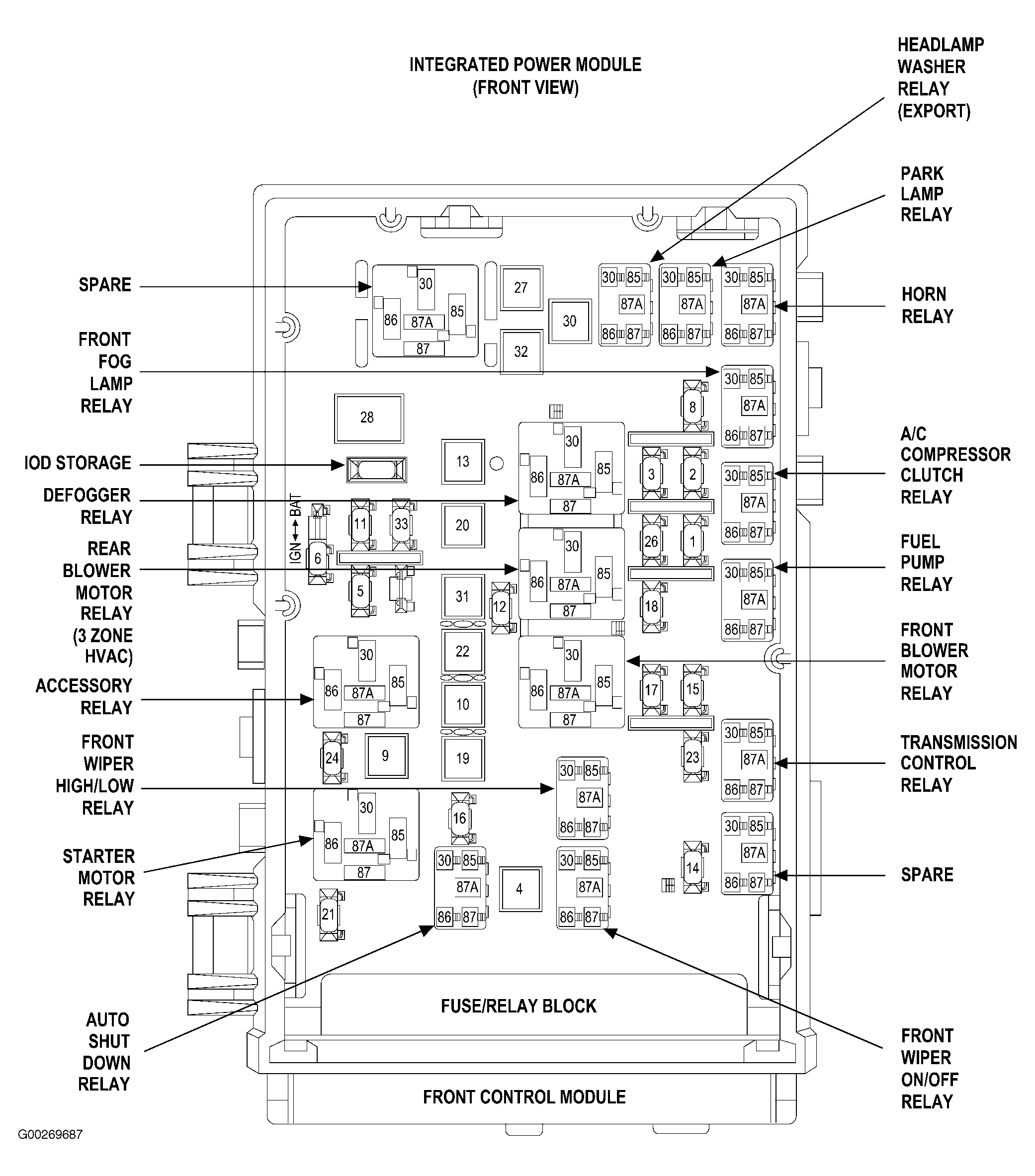

Fig 37: Integrated Power Module

G00269687

Courtesy of DAIMLERCHRYSLER CORP.

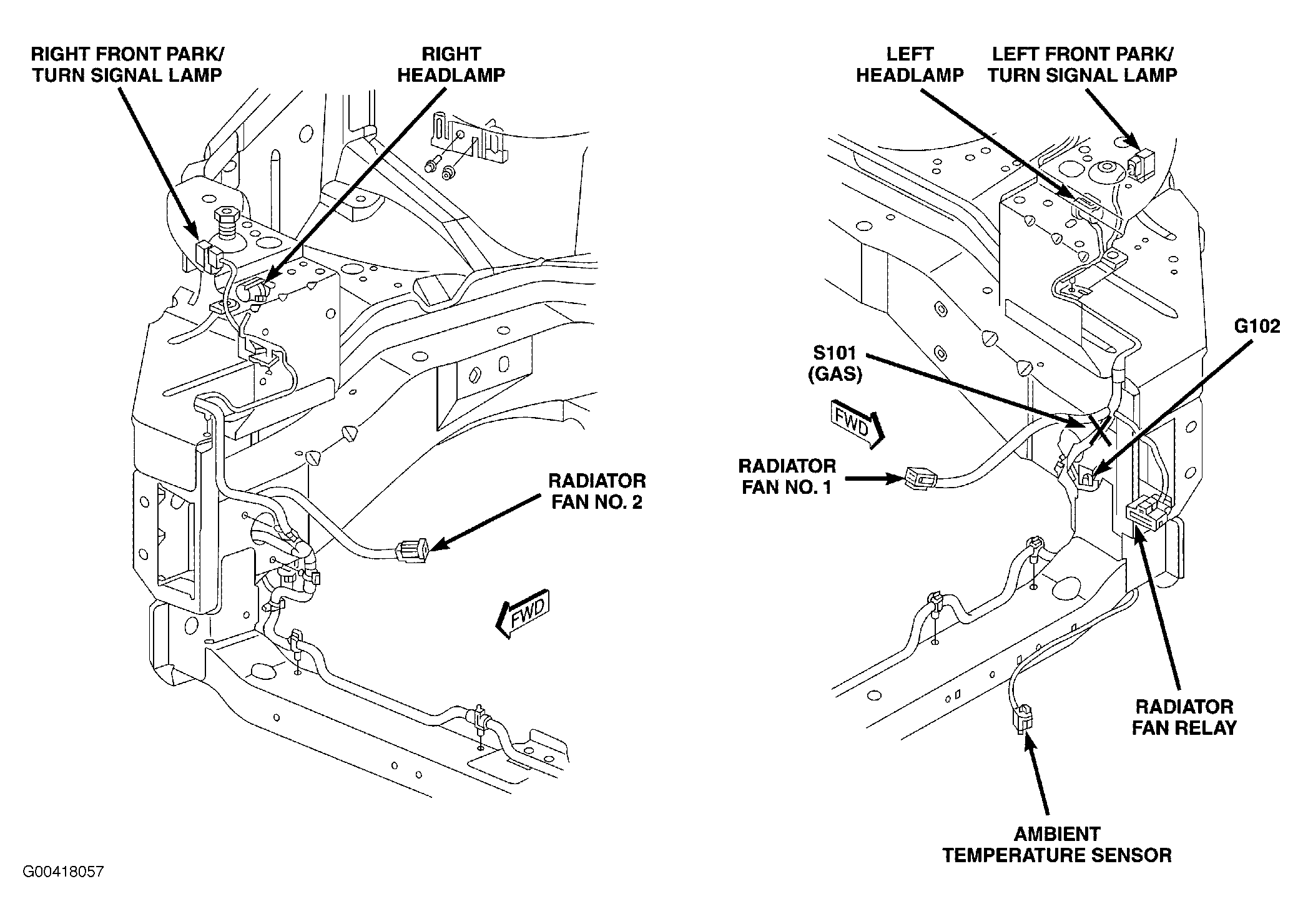

Fig 38: Front Frame Rails

G00418057

Courtesy of DAIMLERCHRYSLER CORP.

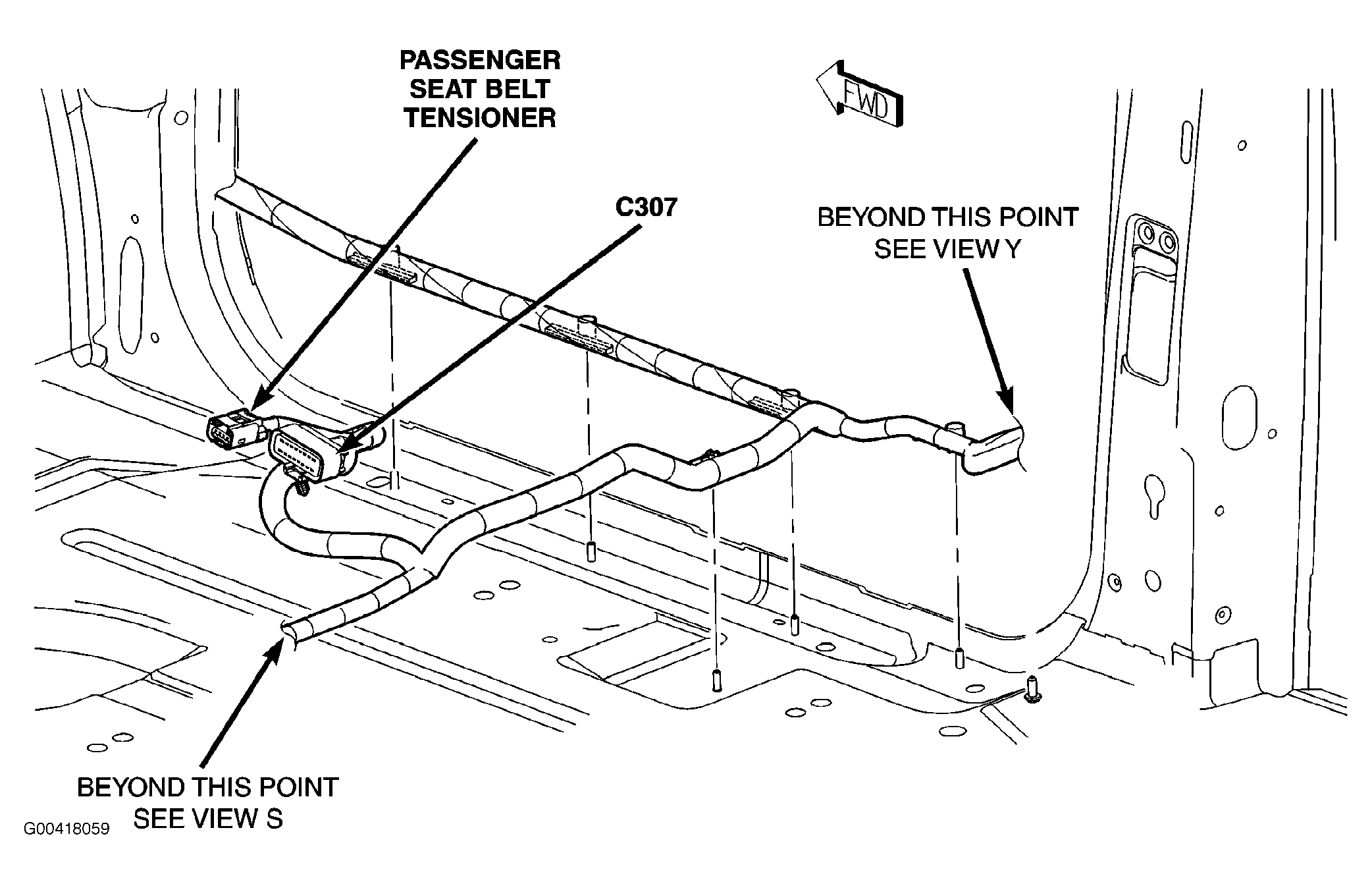

Fig 39: Right Side Of Vehicle Floor

G00418059

Courtesy of DAIMLERCHRYSLER CORP.

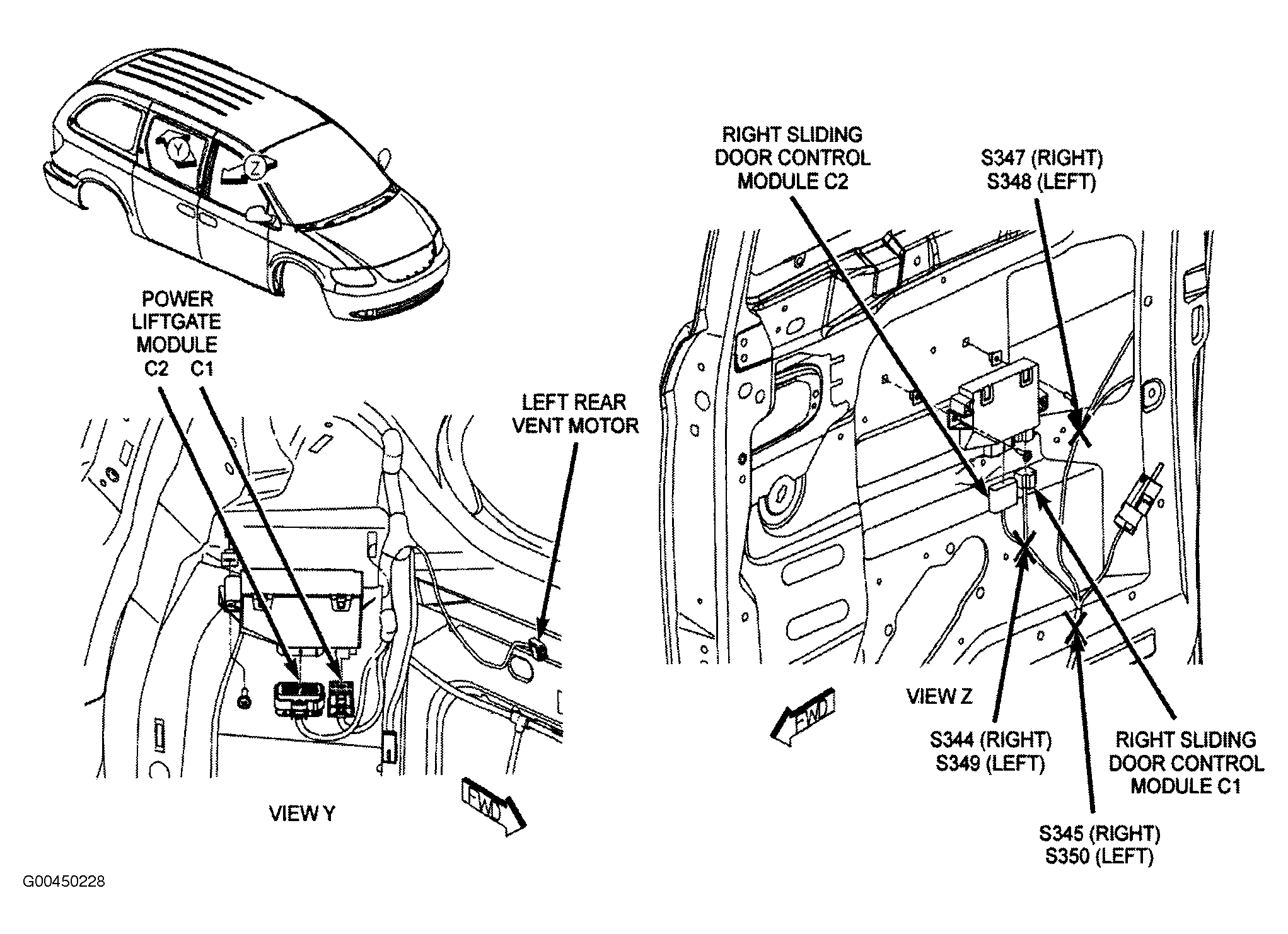

Fig 40: Right Sliding Door (Left Similar)

G00450228

Courtesy of DAIMLERCHRYSLER CORP.

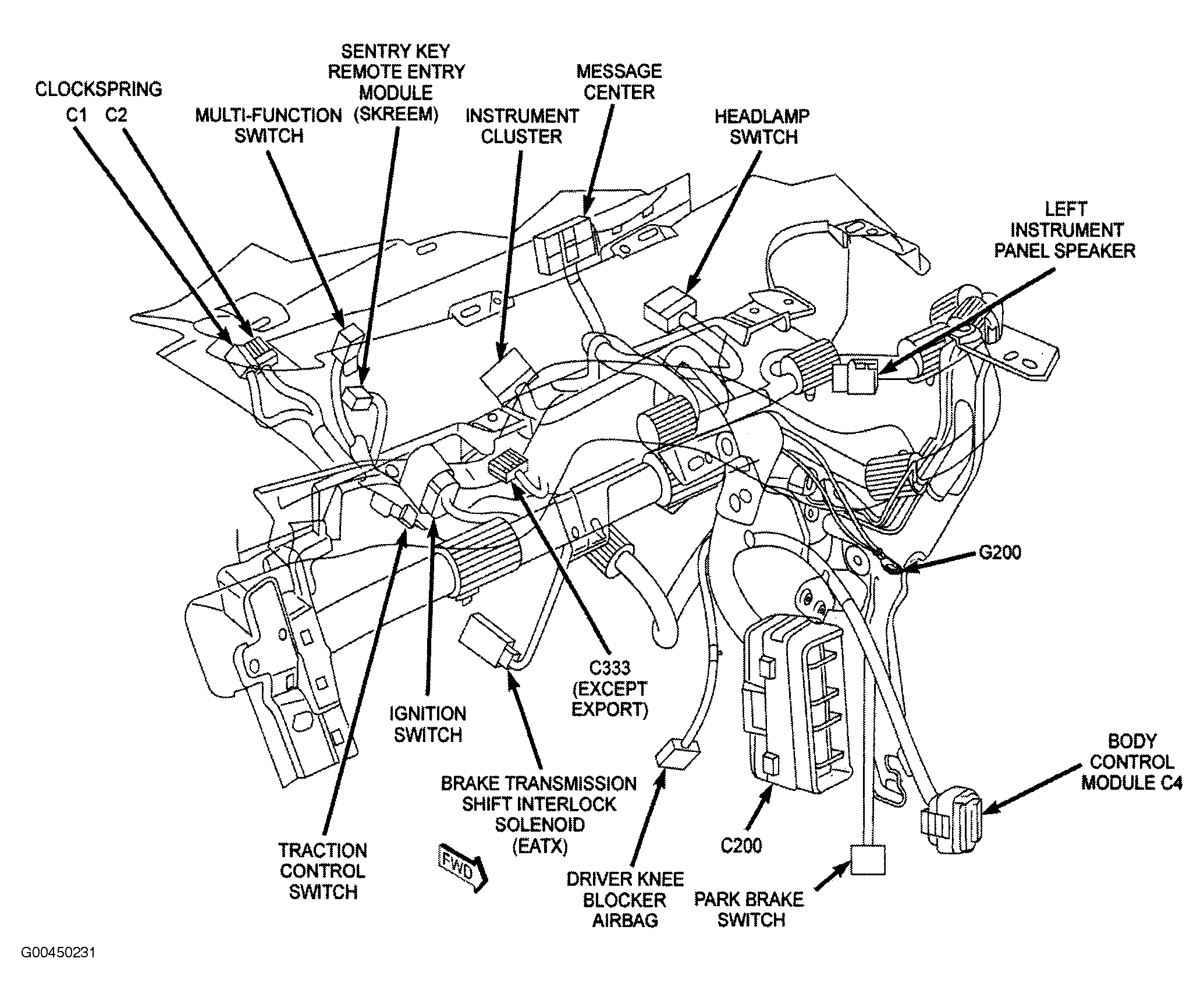

Fig 41: Left Side Of Dash

G00450231

Courtesy of DAIMLERCHRYSLER CORP.
