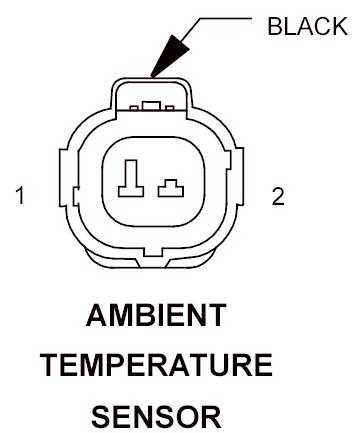

Ambient Temperature Sensor Connector End View
AMBIENT TEMPERATURE SENSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G31 18VT/LG |
AMBIENT TEMPERATURE SENSOR SIGNAL (DIESEL) |
| 1 |
G31 20VT/LG |
AMBIENT TEMPERATURE SENSOR SIGNAL (GAS) |
| 2 |
G931 18VT/BR |
AMBIENT TEMPERATURE SENSOR RETURN (DIESEL) |
| 2 |
K900 20DB/DG |
SENSOR GROUND (GAS) |
