Brake Fluid Level Switch Connector End View
Brake Fluid Level Switch Connector End View

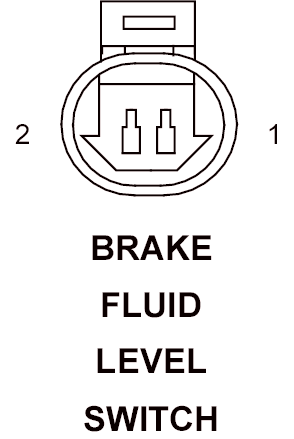

BRAKE FLUID LEVEL SWITCH - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B20 20DG/OR
BRAKE FLUID LEVEL SWITCH SENSE
2
Z420 20BK/OR
GROUND
Courtesy of CHRYSLER CORP.
