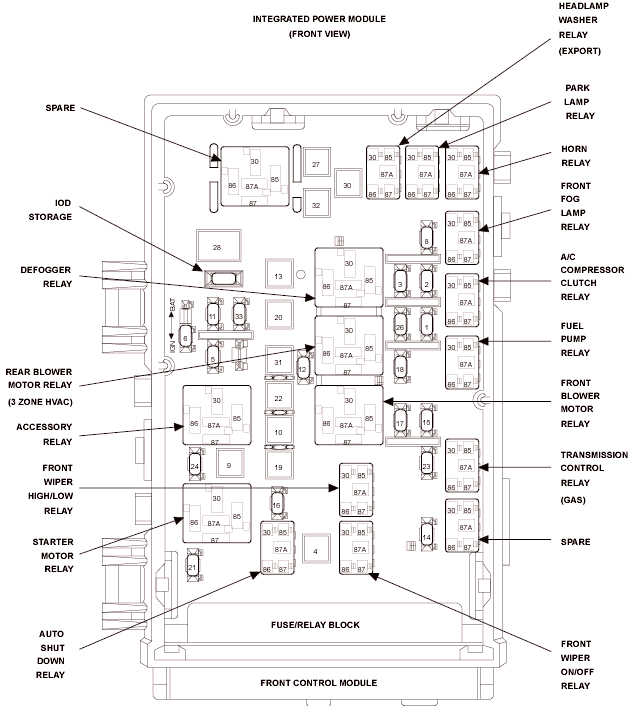

Defogger Relay Connector End View

DEFOGGER RELAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	INTERNAL	B(+)
85	FCM 31	DEFOGGER RELAY CONTROL
86	INTERNAL	B(+)
87	INTERNAL	DEFOGGER RELAY OUTPUT
87A	-	-
