P1004-Short Runner Valve Control Performance
›
Circuit Schematic
Circuit Schematic

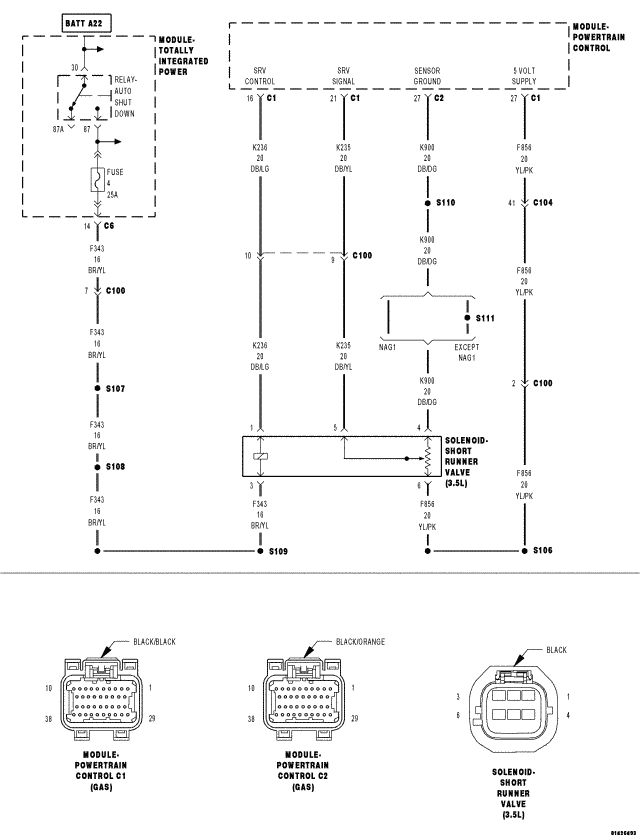

Fig 1: Short Runner Valve Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
