Right Front Impact Sensor Connector End View
Right Front Impact Sensor Connector End View

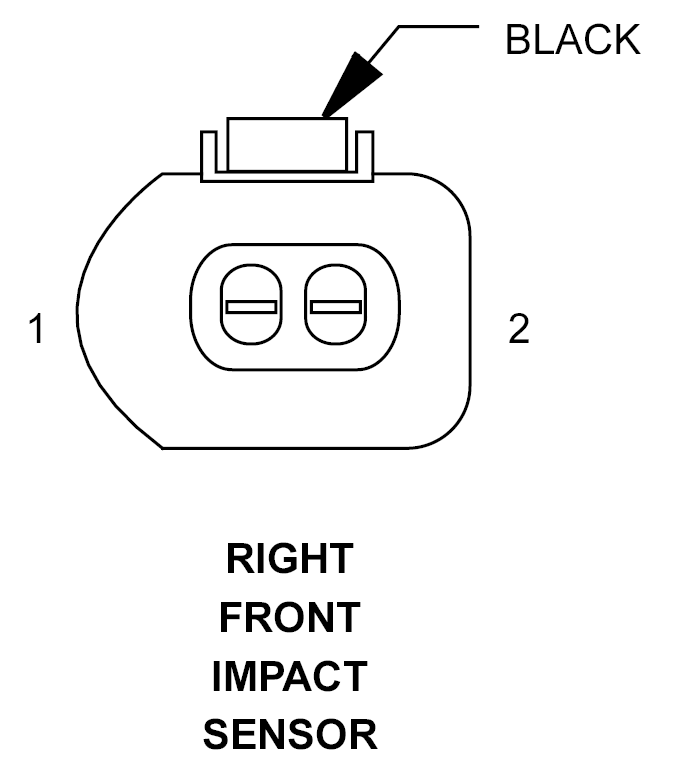

RIGHT FRONT IMPACT SENSOR - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20YL/WT
RIGHT FRONT IMPACT SENSOR SIGNAL
2
20BR
GROUND
