P0702-Control Module TCM Is Not Coded: Notes

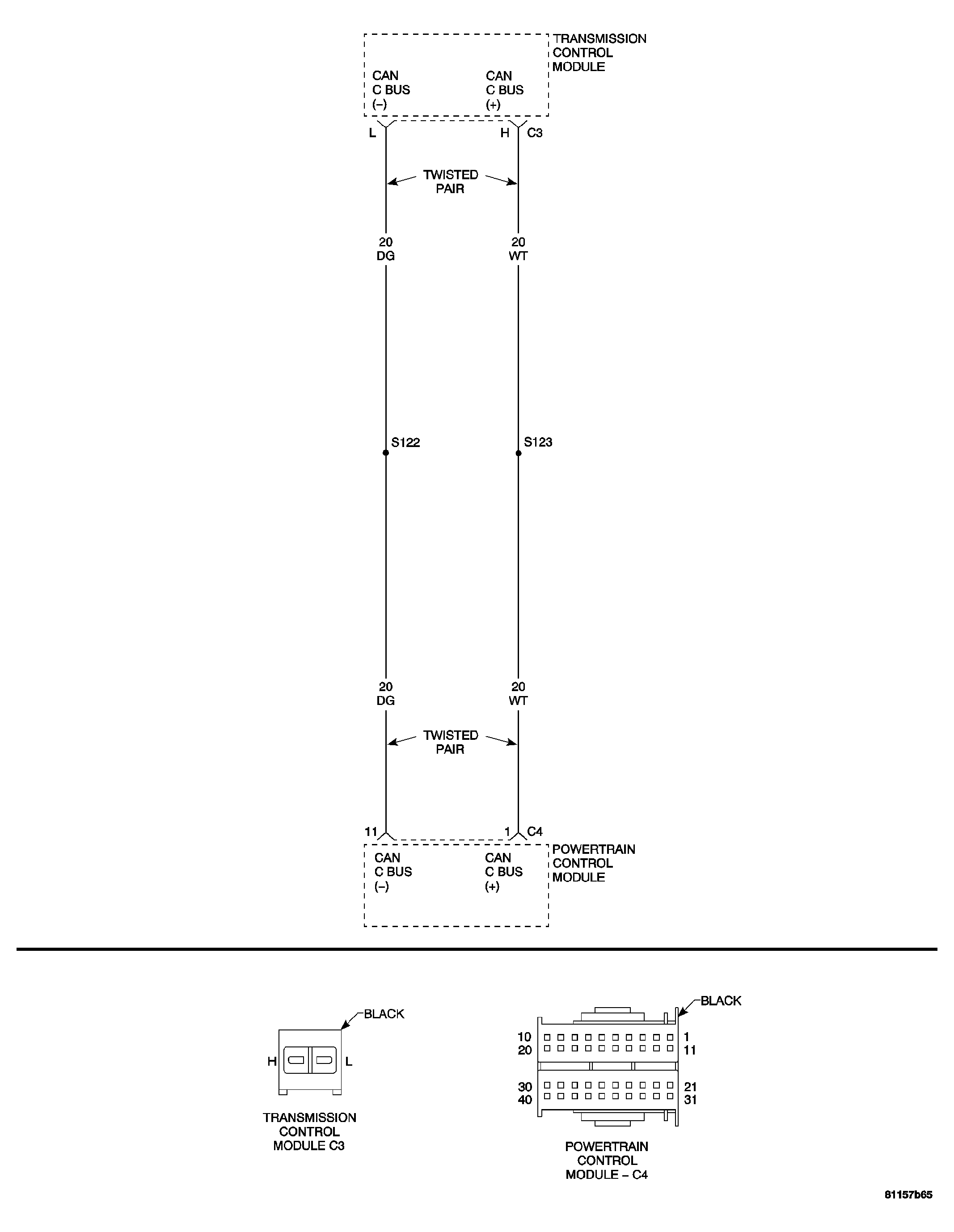

Fig 1: CAN C Bus To Transmission Control Module Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: With the ignition on.
2. Set Condition: The TCM has not been coded.

For a complete Transmission Control Module Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
