Circuit Schematic

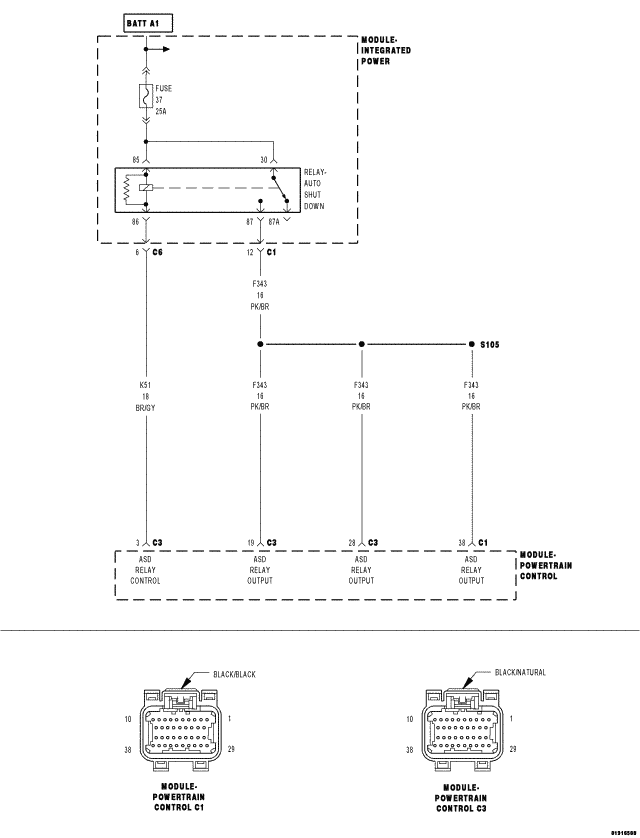

Fig 1: Auto Shut Down Control Circuit Schematic

GC0049669

Courtesy of CHRYSLER LLC
