PDM-37-Module Fuse Blown: Notes

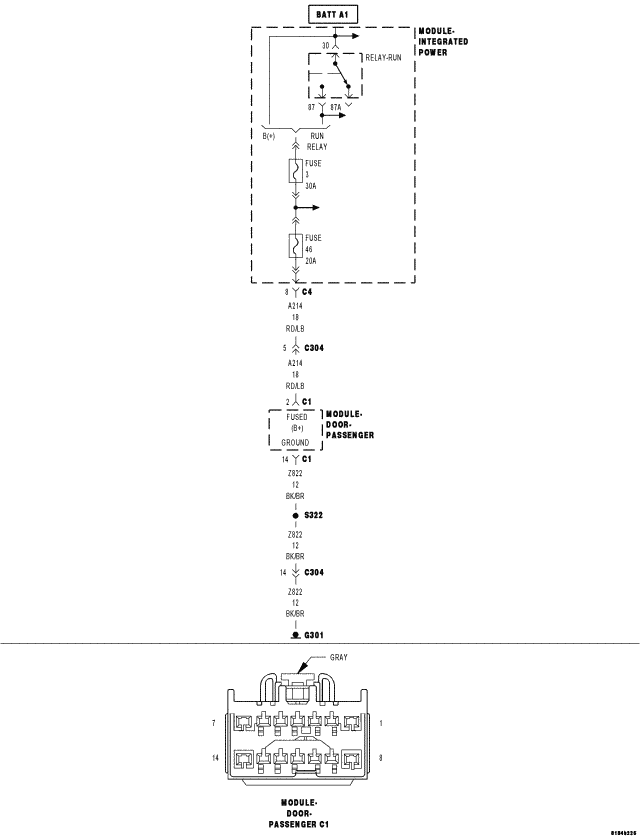

Fig 1: PDM Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   At all times.

2. Set Condition:

   Anytime the module senses voltage input less than 2.0 volts for over 10 seconds, this code will set.
