Power Transfer Unit

WARNING: This page is about a different car, the 2008 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

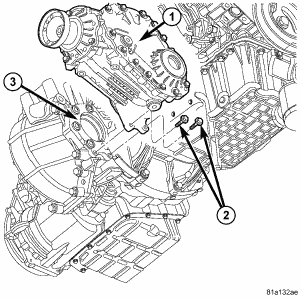

Fig 1: Removing/Installing Power Transfer Unit
GC0050374Courtesy of CHRYSLER LLC
  1. Remove right halfshaft assembly. Refer to REMOVAL .
  2. Remove the exhaust from engine. Refer to REMOVAL .
  3. Remove engine cradle crossmember. Refer to REMOVAL .
  4. Remove propeller shaft assembly. Refer to REMOVAL .
  5. Remove PTU/rear mount bracket.
  6. Remove heat shield.
  7. Remove bracket and brace.
  8. Remove PTU-to-transaxle upper bolts.
  9. Remove PTU-to-bracket lower bolts.
  10. Remove PTU from vehicle.
