Home › Chrysler › 2008 › Sebring Base, 2D Convertible, 2.4 K › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System - Electrical Diagnostics › Abs Electrical Diagnostics › DTC Troubleshooting › C1038-Rear Wheel Speed Sensor Circuit Low › Notes

C1038-Rear Wheel Speed Sensor Circuit Low: Notes

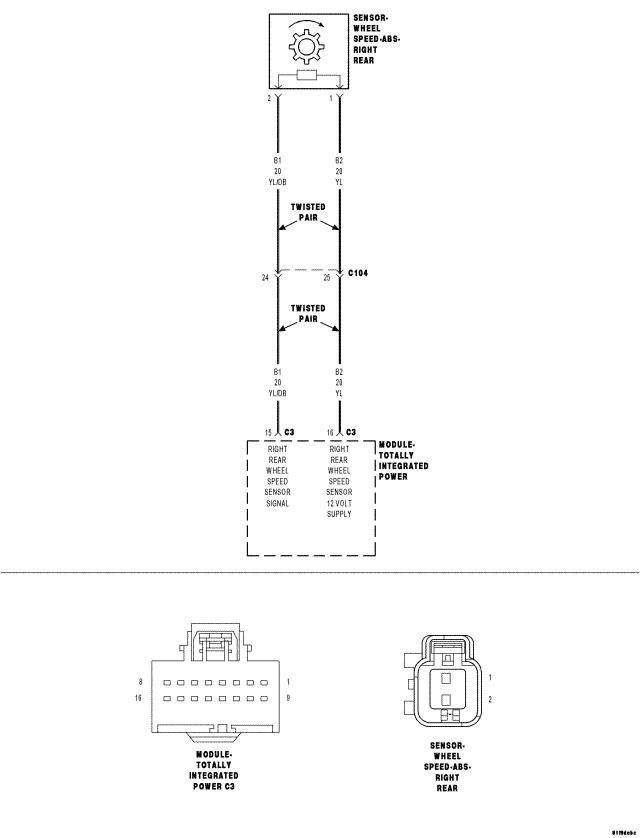

Fig 1: Rear Wheel Speed Sensor Circuit
GC0072059Courtesy of CHRYSLER LLC
