Tandem Fuel Pump: Installation

Fig 1: View Of Fuel Pump & Gasket

Courtesy of CHRYSLER LLC

1. Place new gasket (3) on pump (1).
2. Align pump drive (2) on pump.
   Fig 2: Installing Fuel Pump On Camshaft Slot

   Courtesy of CHRYSLER LLC
3. Insert pump drive into slot on camshaft (1).

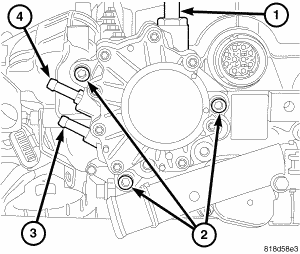

   Fig 3: View Of Fuel Pump & Retainer Bolts

   Courtesy of CHRYSLER LLC
4. Install pump retaining bolts (2) and tighten.
5. Install fuel feed line (4).
6. Install fuel return line (3).
