P0606-Internal Control Processor
›
Circuit Schematic
Circuit Schematic

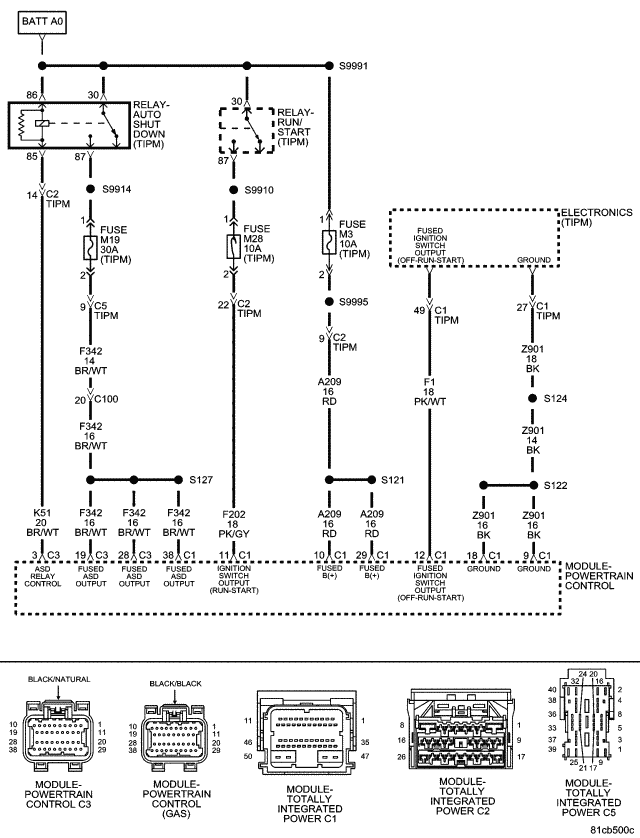

Fig 1: Powertrain Control Module Circuit Schematic
Courtesy of CHRYSLER LLC
