P0645-A/C Control Circuit
›
Circuit Schematic
Circuit Schematic

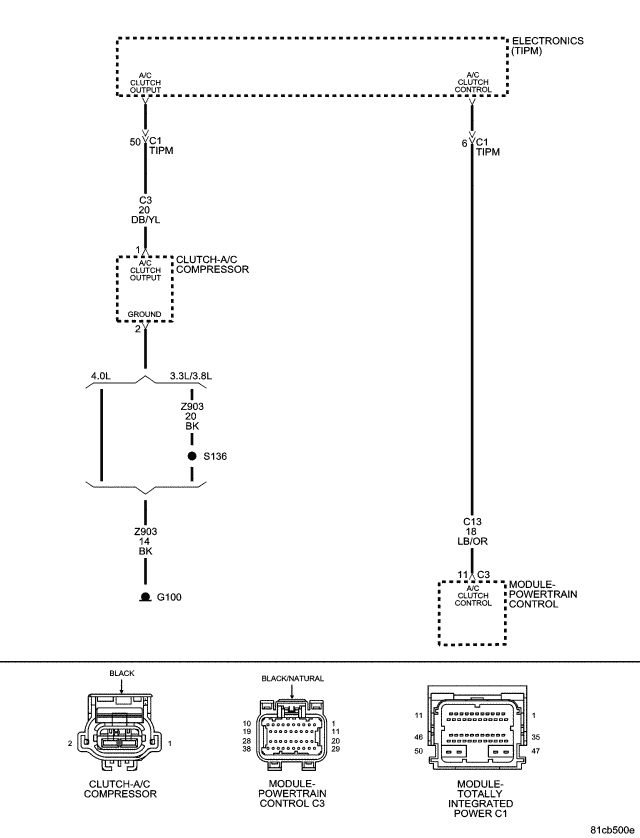

Fig 1: A/C Clutch Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
