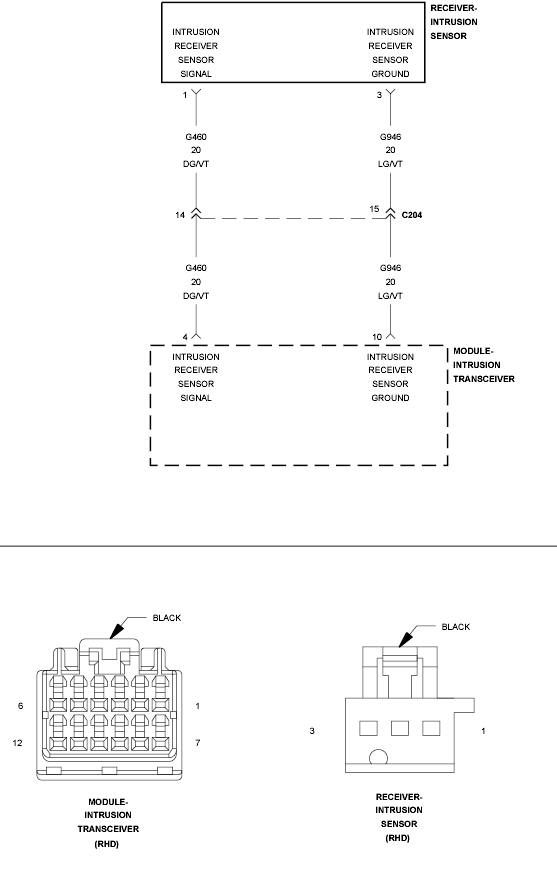

Home › Chrysler › 2009 › 300 LX › Repair and Diagnosis › Body & Frame › Door Locks › Intrusion Transceiver Module (ITM) - Electrical Diagnostics › DTC Troubleshooting › B1A44-Security Receiver Sensor Circuit Open › Circuit Schematic
