3.0L Diesel

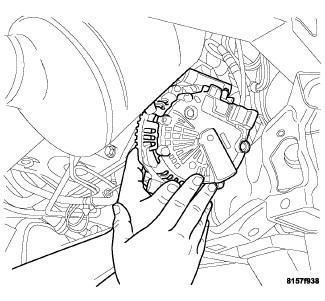

Fig 1: Removing/Installing Generator

Courtesy of CHRYSLER LLC

Install the generator to the vehicle, while installing the two lower mounting bolts.

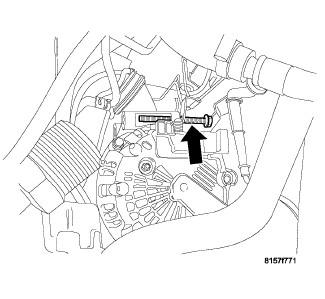

Fig 2: Loosening/Tightening Upper Mounting Bolts
Courtesy of CHRYSLER LLC
Install the radio noise suppressor and the two upper mounting bolts.
Tighten the bolts to 50 N.m (37 ft. lbs.).

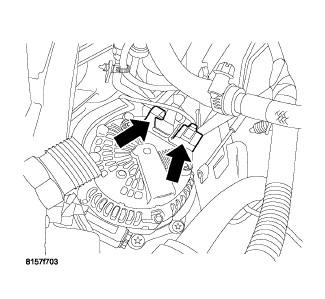

Fig 3: Disconnecting/Connecting Electrical Connectors
Courtesy of CHRYSLER LLC
Connect the electrical to the generator.

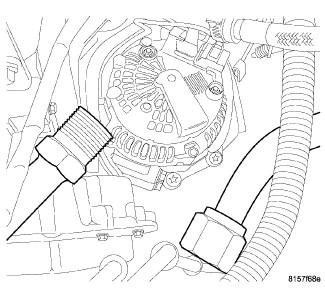

Fig 4: Disconnecting/Connecting Tube
Courtesy of CHRYSLER LLC
Connect the heater tube and tighten the tube nut.

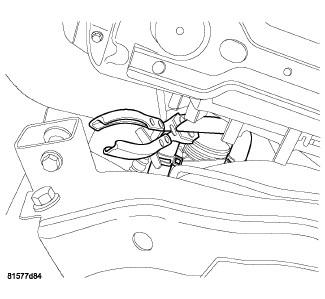

Fig 5: Clamping/Unclamping Rear Heater Hose
Courtesy of CHRYSLER LLC
Release the rear heater tube clamp.

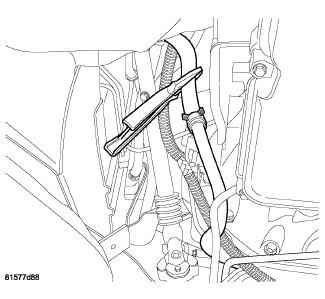

Fig 6: Clamping/Unclamping Front Heater Hose
Courtesy of CHRYSLER LLC
Release the front heater tube clamp.
Tighten the right side engine cradle bolts.
Tighten cradle bolts to 185 N.m (136 ft. lbs.).

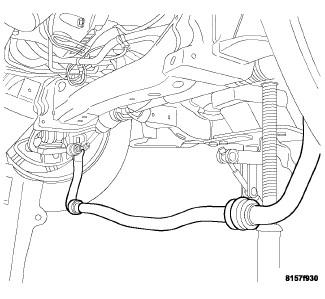

Fig 7: Sway Bar
Courtesy of CHRYSLER LLC
Swing the sway bar up and into place.
Tighten the sway bar bracket retainers to 60 N.m (44 ft. lbs.).

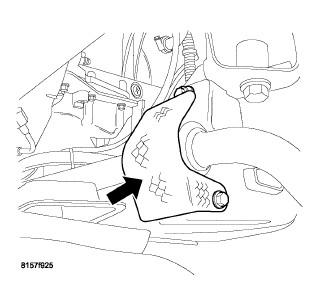

Fig 8: Removing/Installing Sway Bar Heat Shield
Courtesy of CHRYSLER LLC
Install the sway bar mounting bracket heat shields.

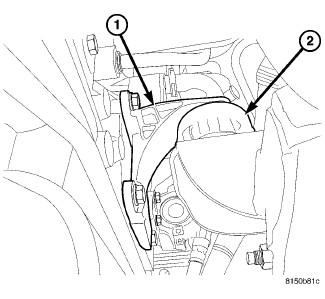

Fig 9: Right Engine Mount
Courtesy of CHRYSLER LLC
Install the left engine mount through bolts
Install the right engine mount insulator. .
Remove the special tool # 8534B Engine Support Fixture.
Install the front and rear belly pans. Refer to Body/Exterior/BELLY PAN - Installation

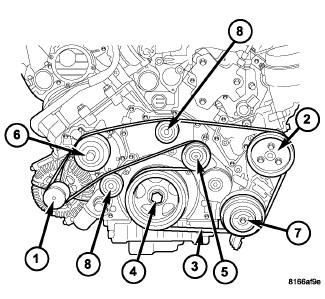

Fig 10: Identifying Drive Belt 3.0L Diesel
Courtesy of CHRYSLER LLC
Install accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation .

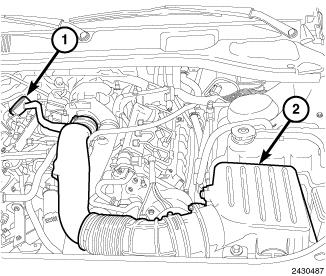

Fig 11: Air Cleaner Cover And Tube Assembly
Courtesy of CHRYSLER LLC
Install the air cleaner cover and tube assembly. .

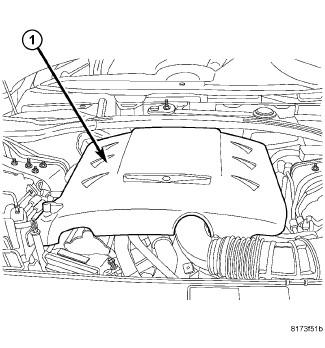

Fig 12: Engine Cover
Courtesy of CHRYSLER LLC
Install the engine cover. .
Fill the coolant system. Refer to Cooling - Standard Procedure
Connect negative battery cable.
