Circuit Schematic

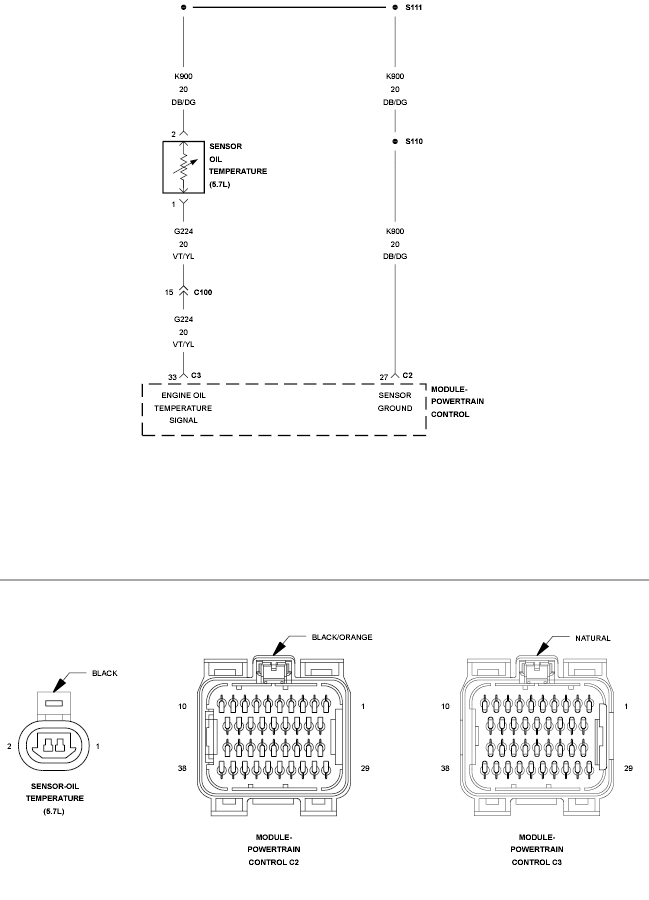

Fig 1: Engine Oil Temperature Sensor Circuit Schematic
GC0090926Courtesy of CHRYSLER LLC
