P0513-Invalid Skim Key
›
Circuit Schematic
Circuit Schematic

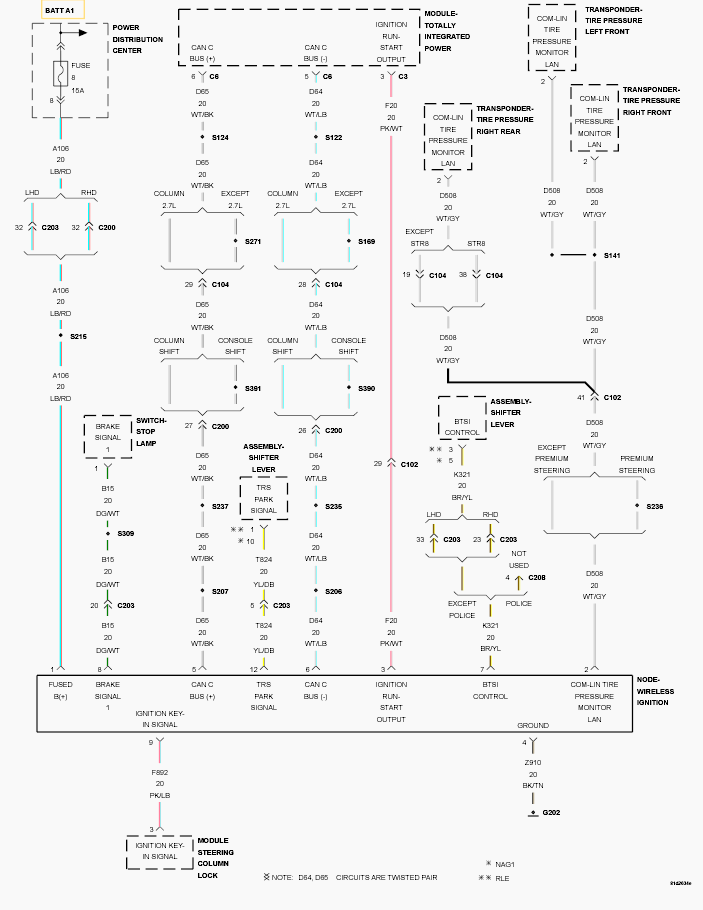

Fig 1: SKIM Key Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
