P0571-Brake Switch 1 Performance
›
Circuit Schematic
Circuit Schematic

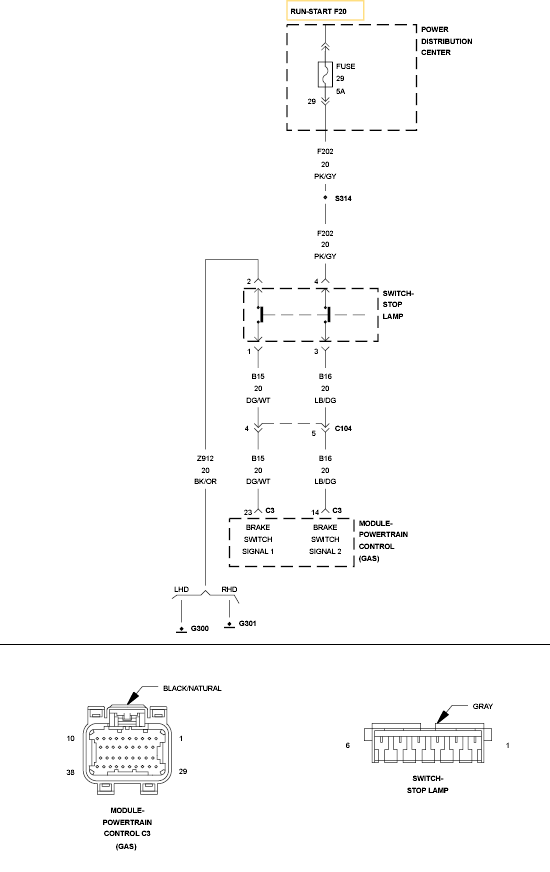

Fig 1: Brake Switch Circuit Schematic
Courtesy of CHRYSLER LLC
