Circuit Schematic

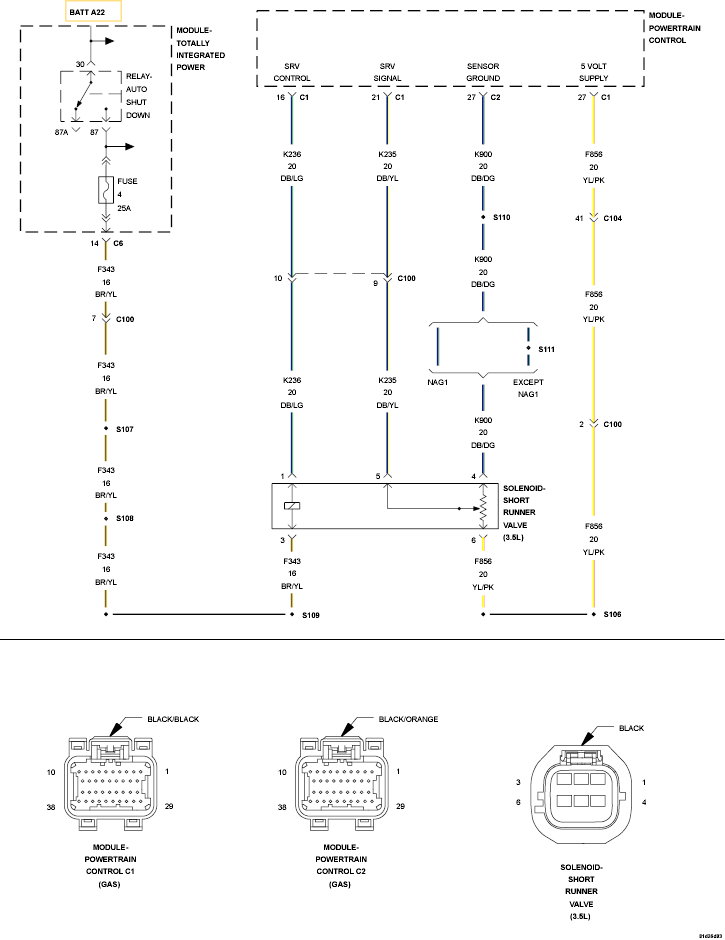

Fig 1: Short Runner Valve (SRV) Control Circuit Schematic
GC0097600Courtesy of CHRYSLER LLC
