Circuit Schematic

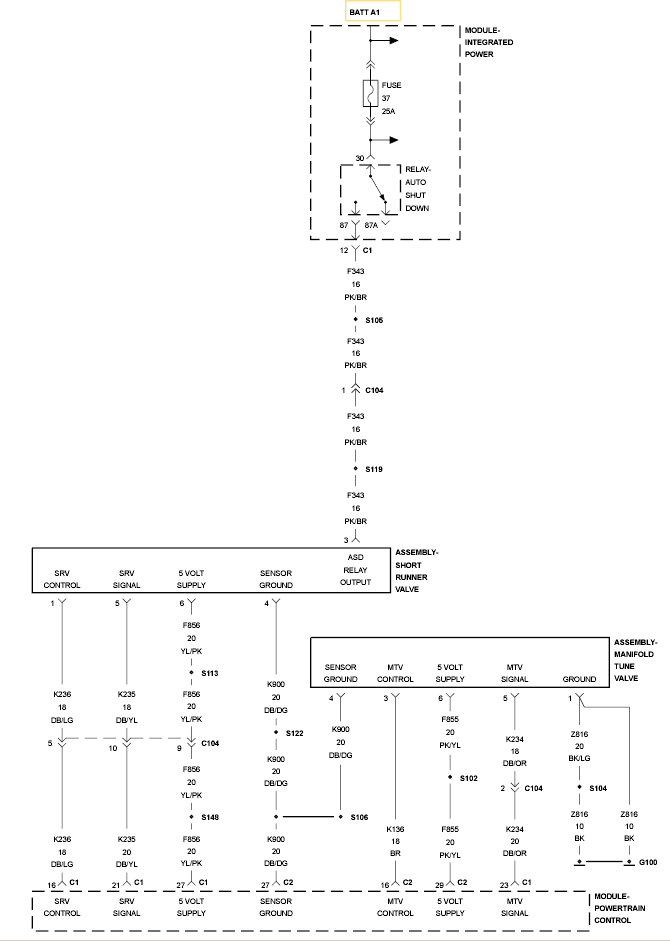

Fig 1: Manifold Tuning Valve Control Circuit Schematic
GC0097589Courtesy of CHRYSLER LLC
