Diagnostic Test

  1. DTC IS ACTIVE
    1. Turn the ignition on.
    2. With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
    3. With the scan tool, actuate the MTV Solenoid Control State.
    4. With the scan tool, select View DTCs.

      Is the status Active for this DTC?

      Yes

      • Go to step  2

      No

  2. (K136) MTV CONTROL CIRCUIT SHORTED TO VOLTAGE

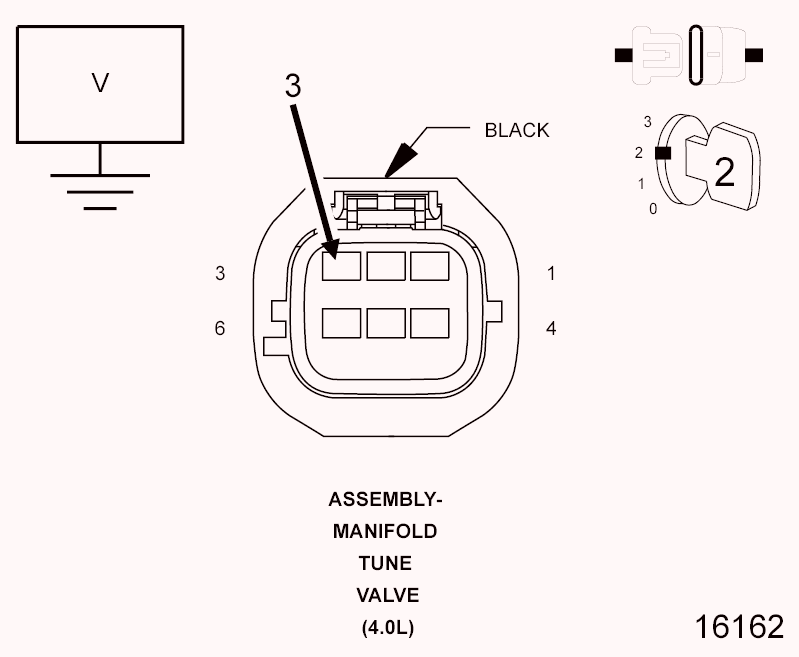

    Fig 1: Measuring Voltage Of MTV Control Circuit In Manifold Tune Valve Assembly Harness Connector
    GC0097590Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the Manifold Tune Valve Assembly connector.
    3. Disconnect the Powertrain Control Module (PCM) connector.
    4. Turn the ignition on.
    5. Measure the voltage of the (K136) MTV Control circuit in the Manifold Tune Valve Assembly harness connector.

      Is there any voltage present?

      Yes

      No

      • Go to step  3
  3. (K136) MTV CONTROL CIRCUIT SHORTED TO GROUND

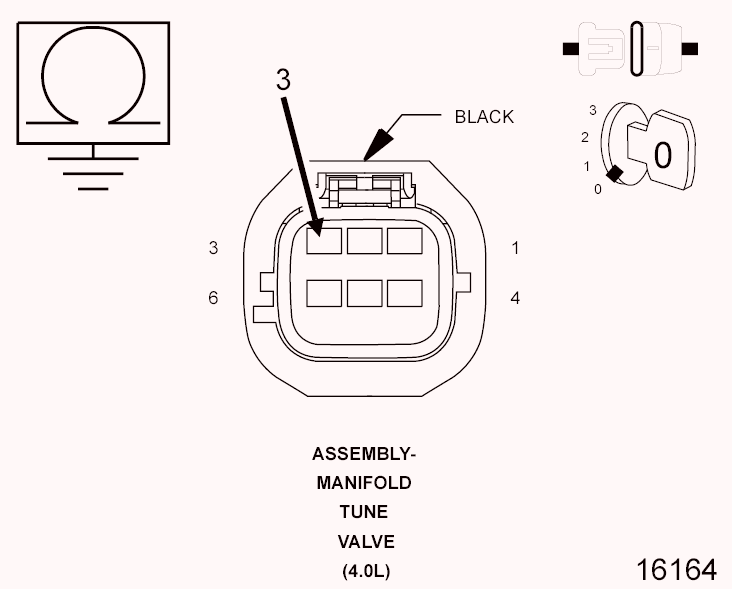

    Fig 2: Measuring Resistance Between Ground And MTV Control Circuit In Manifold Tune Valve Assembly Harness Connector
    GC0097591Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Measure the resistance between ground and the (K136) MTV Control circuit in the Manifold Tune Valve Assembly harness connector.

      Is the resistance above 100 ohms?

      Yes

      • Go to step  4

      No

  4. (K136) MTV CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

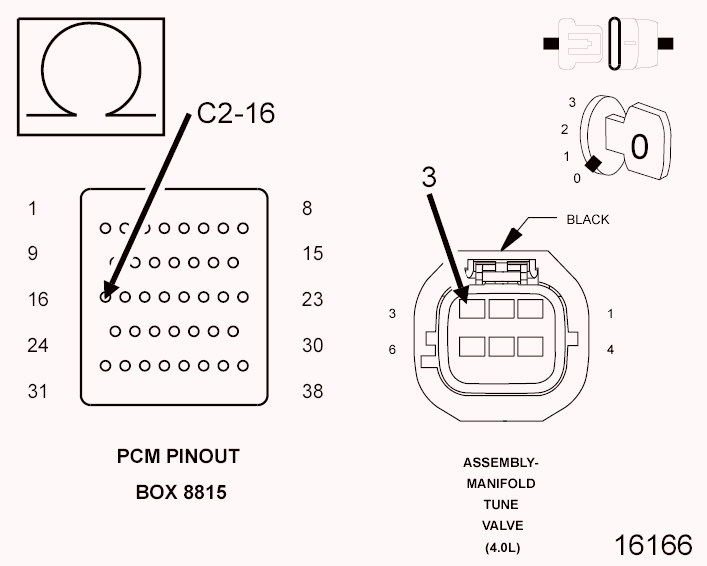

    Fig 3: Measuring Resistance Of MTV Control Circuit Between Manifold Tune Valve Assembly Harness Connector And Appropriate Terminal Of Special Tool #8815
    GC0097592Courtesy of CHRYSLER LLC
    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.
    1. Measure the resistance of the (K136) MTV Control circuit between the Manifold Tune Valve Assembly harness connector and the appropriate terminal of special tool #8815.

      Is the resistance below 5.0 ohms?

      Yes

      • Go to step  5

      No

  5. (Z816) GROUND CIRCUIT OPEN OR HIGH RESISTANCE

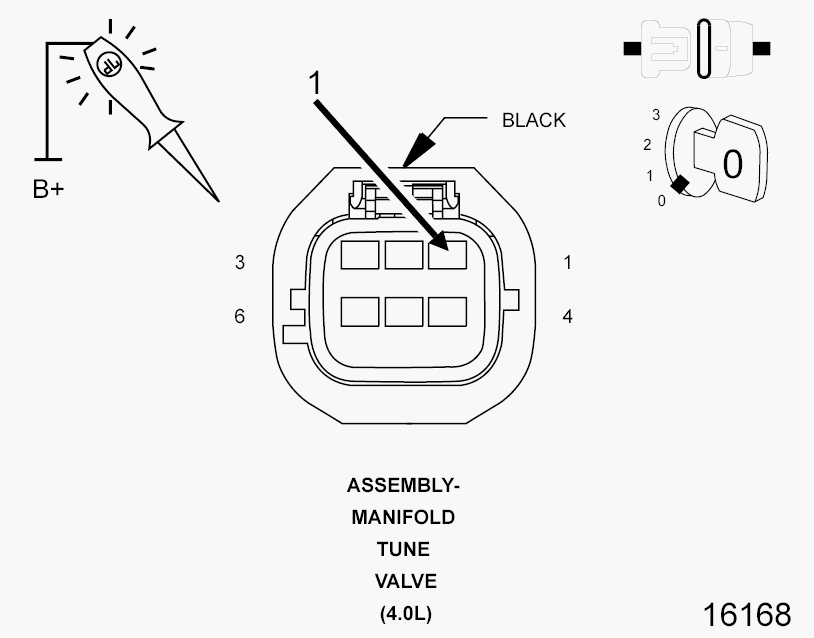

    Fig 4: Using 12 Volt Test Light Connected To 12 Volts To Check Ground Circuit In Manifold Tune Valve Assembly Harness Connector
    GC0097593Courtesy of CHRYSLER LLC
    1. Using a 12 volt test light connected to 12 volts, check the (Z816) Ground circuit in the Manifold Tune Valve Assembly harness connector.
      NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

      Is the test light illuminated and bright?

      Yes

      • Go to step  6

      No

  6. MANIFOLD TUNE VALVE ASSEMBLY

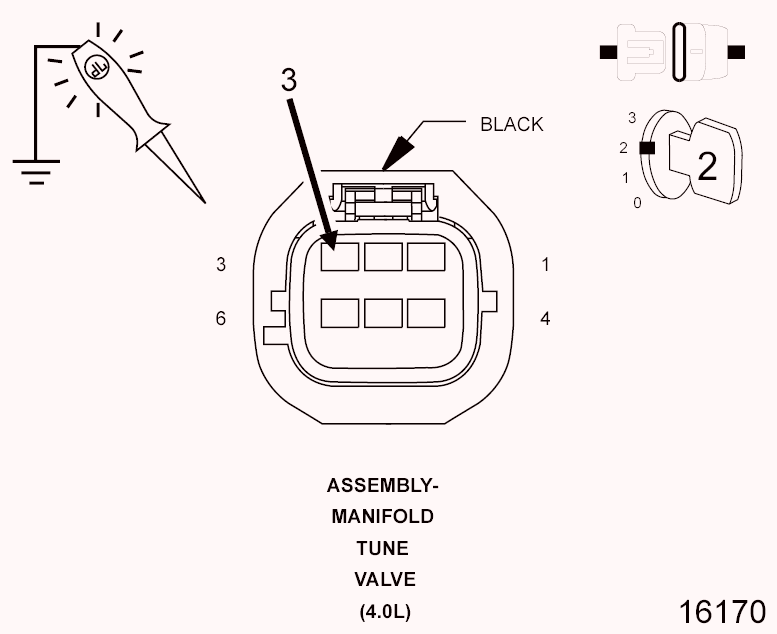

    Fig 5: Using 12 Volt Test Light Connected To Ground To Check MTV Control Circuit In Manifold Tune Valve Assembly Harness Connector
    GC0097594Courtesy of CHRYSLER LLC
    1. Connect the Powertrain Control Module (PCM) connector.
    2. Turn the ignition on.
    3. With the scan tool, actuate the MTV Solenoid Control State.
    4. Using a 12 volt test light connected to ground, check the (K136) MTV Control circuit in the Manifold Tune Valve Assembly harness connector.
      NOTE: If the DTC is active, the actuation test may not be allowed by the PCM. If may be necessary to clear the DTCs before starting the actuation.
      NOTE: The voltage supplied to the solenoid circuit during the actuation may be less than battery voltage. The test light should be illuminated, but may not be as bright as a direct connection to the battery.

      Is the test light illuminated during the actuation?

      Yes

      No

      • Go to step  7
  7. POWERTRAIN CONTROL MODULE (PCM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Manifold Tune Valve Assembly and the Powertrain Control Module (PCM).
    2. Look for any chafed, pierced, pinched, or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals.
    4. Refer to any Technical Service Bulletins that may apply.

      Were any problems found?

      Yes

      No
