Circuit Schematic

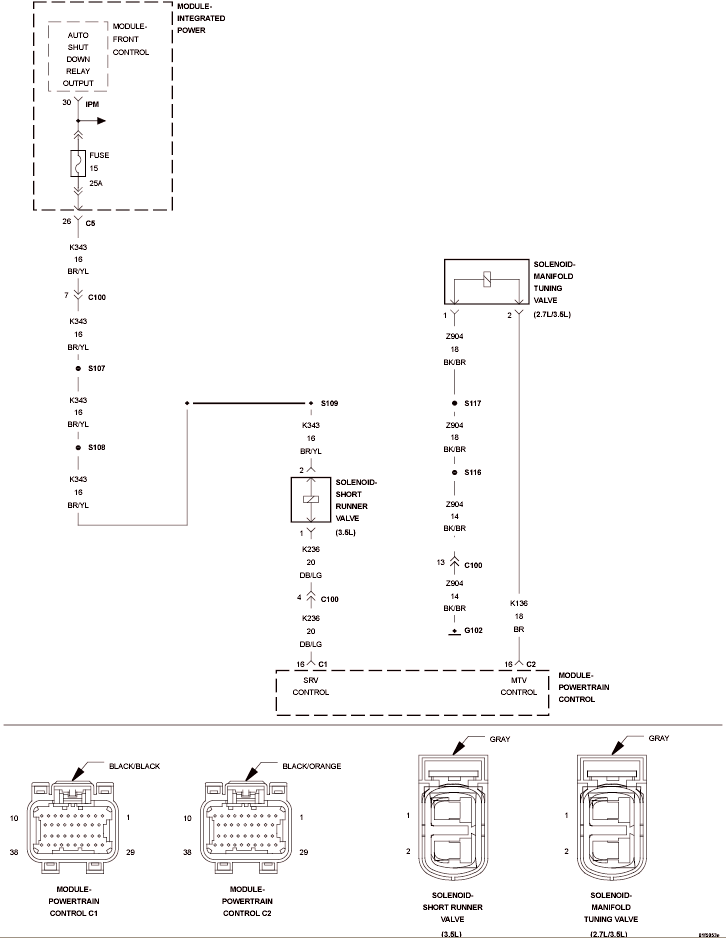

Fig 1: Intake Manifold Tuning Valve Position Sensor Circuit Schematic

GC0097634

Courtesy of CHRYSLER LLC
