Repair and Diagnosis
›
Engine Performance
›
System
›
DTCS P2302 To P3450
›
P2533-Ignition Switch Run/Start Position Circuit
›
Circuit Schematic
Circuit Schematic

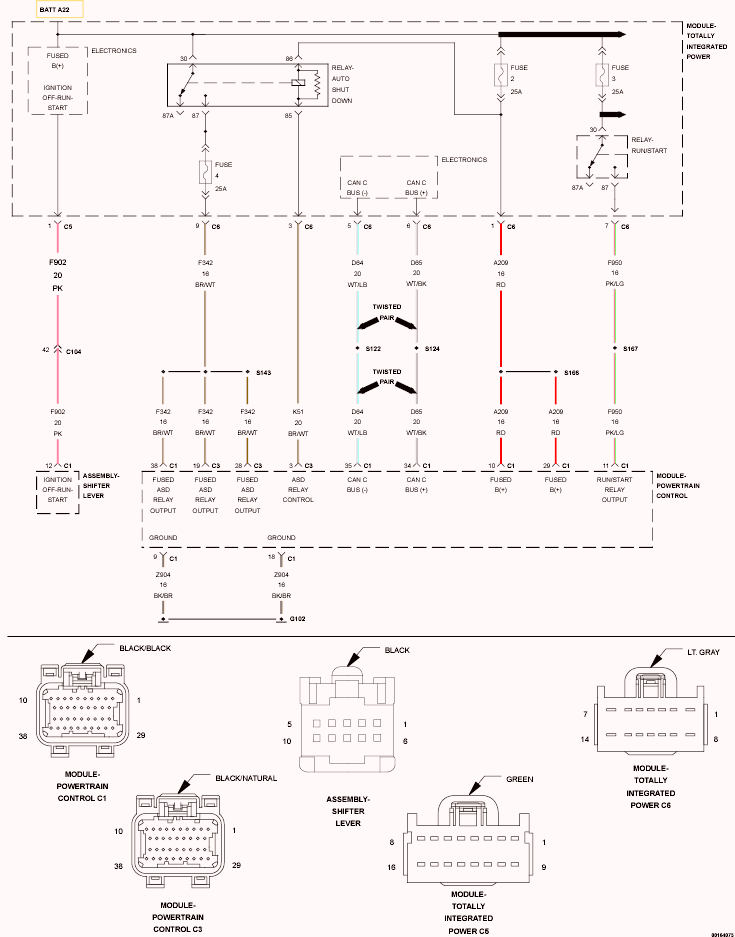

Fig 1: Ignition Switch Run/Start Position Circuit Schematic
Courtesy of CHRYSLER LLC
