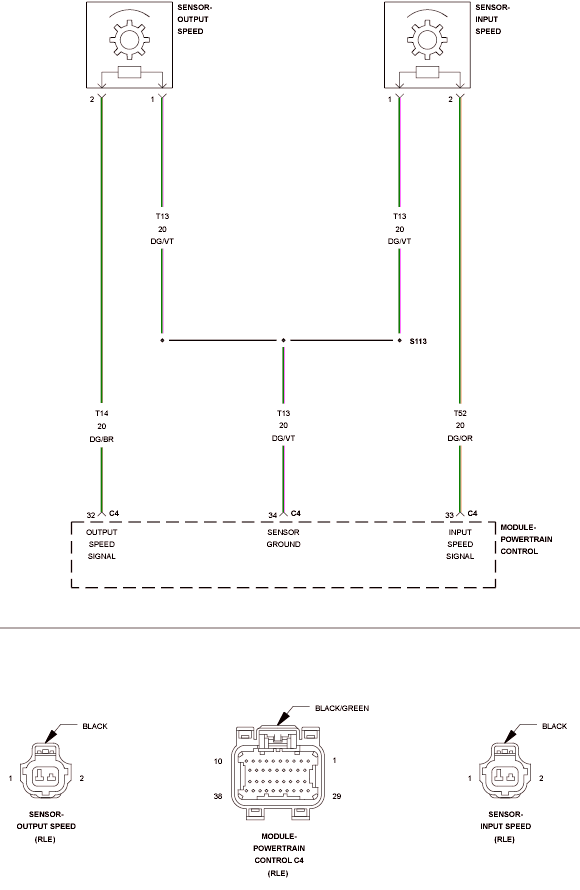

Home › Chrysler › 2009 › 300 LX › Repair and Diagnosis › Transmission › Automatic Trans › (Powertrain Control Module (Pcm) - Electrical Diagnostics - 42RLE) › DTC Troubleshooting › P1794-Speed Sensor Ground Error › Circuit Schematic
