Engine Block Heater

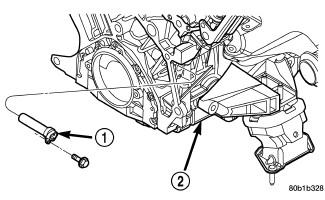

Fig 1: Engine Block Heater 2.7L/3.5L

Courtesy of CHRYSLER LLC

The 2.7L and 3.5L engine block heater (1) is mounted in the cylinder block (2), near the right rear corner. The engine block heater (1) is a dry cylinder type design and is powered by 110 volt AC.

Fig 2: Block Heater 5.7L/6.1L

Courtesy of CHRYSLER LLC

1 - BLOCK HEATER

The 5.7L and 6.1L engine block heater (1) is mounted in the cylinder block, near the left rear corner. The engine block heater (1) is a dry cylinder type design and is powered by 110 volt AC.
