2.7L/3.5L Engine

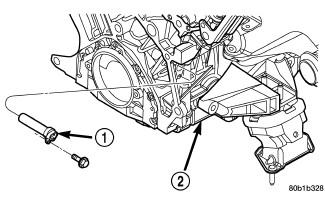

Fig 1: Engine Block Heater 2.7L/3.5L

Courtesy of CHRYSLER LLC

1 - BLOCK HEATER

2 - ENGINE - RIGHT SIDE

Thoroughly clean cylinder block heater cavity.
Insert heater assembly (1) into block (2) with mounting hole is located below heater terminals.
Install mounting screw and tighten to 12 N.m (105 in. lbs.).
Attach power cord to heater.
CAUTION: To prevent damage, the power cord must be secured in its retainer clips, and not positioned so it could contact linkages or exhaust manifolds.
Lower vehicle.
