2.7L/3.5L Engine
Courtesy of CHRYSLER LLC

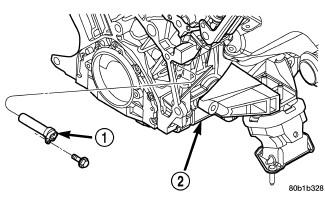

| 1 - BLOCK HEATER |
| 2 - ENGINE - RIGHT SIDE |
- Raise vehicle on hoist.
- Detach power cord plug from block heater (1).
- Remove block heater attaching screw located below heater terminals.
- Remove block heater from cylinder block (2).
