ARM, Lower Control, RWD: Installation: Installation

Fig 1: WHEEL ALIGNMENT ADJUSTMENT BOLT

Courtesy of CHRYSLER LLC

NOTE: If installing a lower control arm engine cradle bolt that is a wheel alignment adjustment bolt (1) (lengthwise grooved shaft (2)), make sure to install it in the same position which it was in upon removal. For more details on installation of this special bolt. See Front Suspension/Wheel Alignment - Standard Procedure .

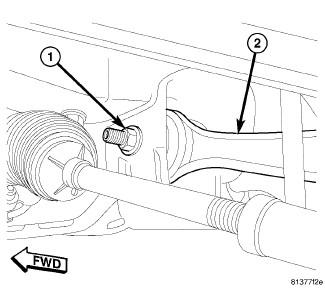

Fig 2: CONTROL ARM CRADLE BOLT HEAD

Courtesy of CHRYSLER LLC

1. Slide lower control arm (4) into position in engine cradle and install mounting bolt from rear.
   Fig 3: CONTROL ARM CRADLE BOLT NUT

   Courtesy of CHRYSLER LLC
2. Install nut (1) on lower control arm cradle bolt, but do not tighten at this time  .
   Fig 4: BALL JOINT SEAL BOOT HEIGHT

   Courtesy of CHRYSLER LLC
   CAUTION: Before installing knuckle to lower control arm, measure height of ball joint seal boot (1) mounted on knuckle. If seal boot height is above 25.5 mm, any air inside seal boot must be expelled. To do so, follow these steps.

   1. Tip ball joint stud completely to one side.
   2. Using thumb and index finger, gently squeeze seal boot together at center expelling any air. Do not allow grease to be release.
   3. Push down very top of seal boot.
   4. Return ball joint stud to original "centered" position.
   5. Measure ball joint seal boot height (1) making sure it is within specification.
   6. Wipe any grease from ball joint stud.

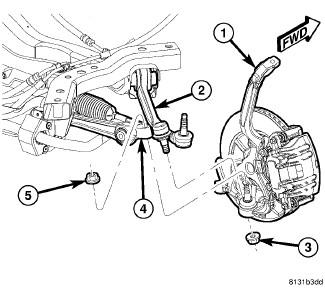

   Fig 5: BALL JOINT ATTACHMENT

   Courtesy of CHRYSLER LLC
3. Pull knuckle (1) downward and position lower control arm (4) over ball joint stud. Release knuckle, guiding stud into lower control arm. Install NEW nut (5) on ball joint stud attaching lower control arm (4) to knuckle (1). Tighten nut by holding ball joint stud with a hex wrench while turning nut with a wrench. Tighten nut using crow foot wrench on torque wrench to 68 N.m + 90° turn (50 ft. lbs. + 90° turn).

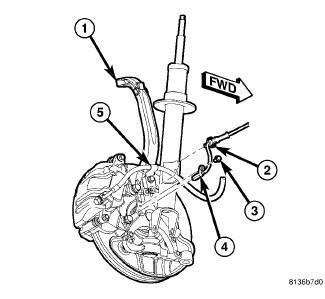

   Fig 6: WHEEL SPEED SENSOR AT FRONT KNUCKLE

   Courtesy of CHRYSLER LLC
4. Install wheel speed sensor head (4) into knuckle and install mounting screw (3). Tighten screw to 11 N.m (95 in. lbs.).
5. Attach wheel speed sensor cable and routing clip (2) to brake flex hose routing bracket (5).

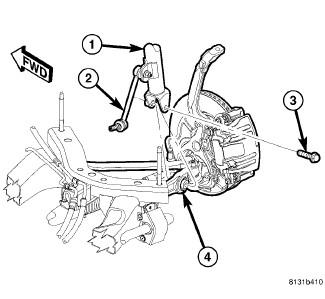

   Fig 7: LOWER SHOCK MOUNTING BOLT

   Courtesy of CHRYSLER LLC
6. Install lower shock mounting bolt (3) attaching shock assembly (1) to lower control arm (4). Do not tighten bolt at this time.
   Fig 8: TIRE AND WHEEL MOUNTING

   Courtesy of CHRYSLER LLC
7. Install tire and wheel assembly (1). Refer to Tires and Wheels - Installation . Tighten wheel mounting nuts (3) to 150 N.m (110 ft. lbs.) (Police - 190 N.m (140 ft. lbs.)).
8. Lower vehicle.
   CAUTION: Because stabilizer bar is disconnected at cradle it is important to use extra care while moving vehicle to alignment rack/drive-on lift.
9. Position vehicle on an alignment rack/drive-on lift.
10. Tighten lower shock mounting bolt (3) to 174 N.m (128 ft. lbs.).
    Fig 9: WHEEL ALIGNMENT ADJUSTMENT BOLT

    Courtesy of CHRYSLER LLC
11. Perform wheel alignment. See Front Suspension/Wheel Alignment - Standard Procedure
    CAUTION: If the control arm engine cradle bolt is a wheel alignment adjustment bolt (lengthwise grooved shaft (2)), be sure to only tighten the nut. Do not rotate the bolt head (1) or damage to the bushing will occur.
    Fig 10: CONTROL ARM CRADLE BOLT NUT

    Courtesy of CHRYSLER LLC
12. Once camber is found to be within specifications, using a crowfoot wrench, tighten lower control arm cradle bolt nut (1) to 176 N.m (130 ft. lbs.) while holding the bolt stationary.

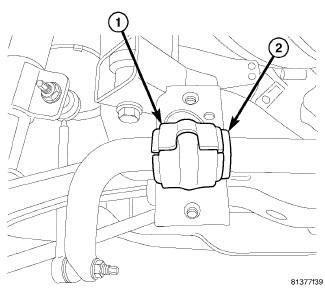

    Fig 11: FRONT STABILIZER BAR ISOLATOR ON BAR

    Courtesy of CHRYSLER LLC
    CAUTION: Because of stabilizer bushing outer shape, it is very important to install bushings in position discussed in following step.
13. Utilizing slit in bushing, install stabilizer bar bushing (1) against locating collar on stabilizer bar (2) as shown in illustration. Make sure slit in bushing is positioned toward rear of vehicle.

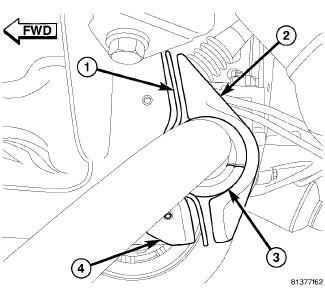

    Fig 12: FRONT STABILIZER BAR ISOLATOR RETAINER

    Courtesy of CHRYSLER LLC
14. Install stabilizer bar bushing retainer halves (1) (2) around bushing (3).

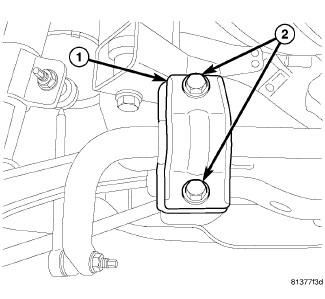

    Fig 13: FRONT STABILIZER BAR ISOLATOR RETAINER BOLTS

    Courtesy of CHRYSLER LLC
15. Install bolts (2) securing stabilizer bar bushing retainer halves (1) to cradle. Tighten bolts to 60 N.m (44 ft. lbs.).

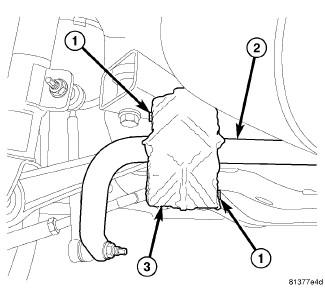

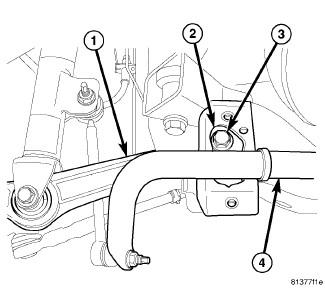

    Fig 14: FRONT STABILIZER BAR HEAT SHIELD

    Courtesy of CHRYSLER LLC
16. Install stabilizer bar heat shield (3) over stabilizer bar bushing retainer. Install mounting screws (1).
17. Install belly pan. Refer to Body/Exterior/BELLY PAN - Removal
