Brake Fluid Level Switch Connector End View

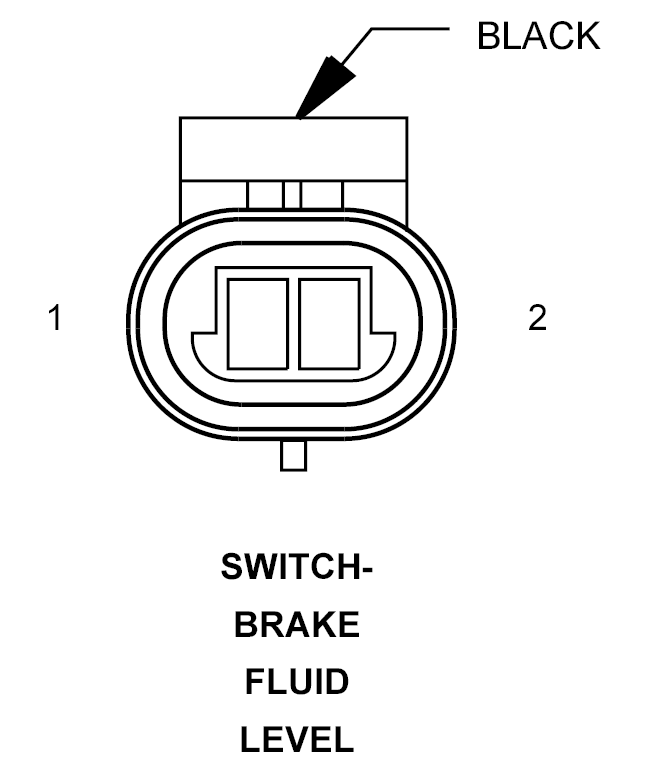

SWITCH-BRAKE FLUID LEVEL - BLACK 2-WAY

GPT780351Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
2 Z902 20BK GROUND
