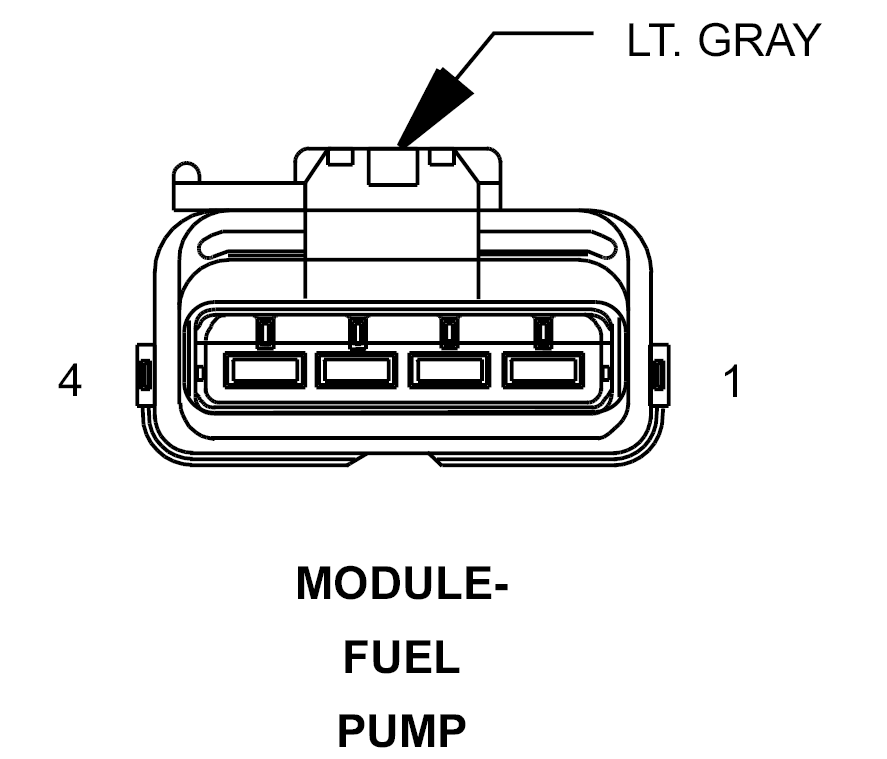

Fuel Pump Module Connector End View

MODULE-FUEL PUMP - LT. GRAY 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z904 16BK	GROUND
2	Z904 20BK/LG	GROUND
3	N4 20DB	FUEL LEVEL SENSOR SIGNAL
4	N1 16DG/WT	FUEL PUMP CONTROL OUTPUT
