Glow Plug Module Connector End View (C1)
Glow Plug Module Connector End View (C1)

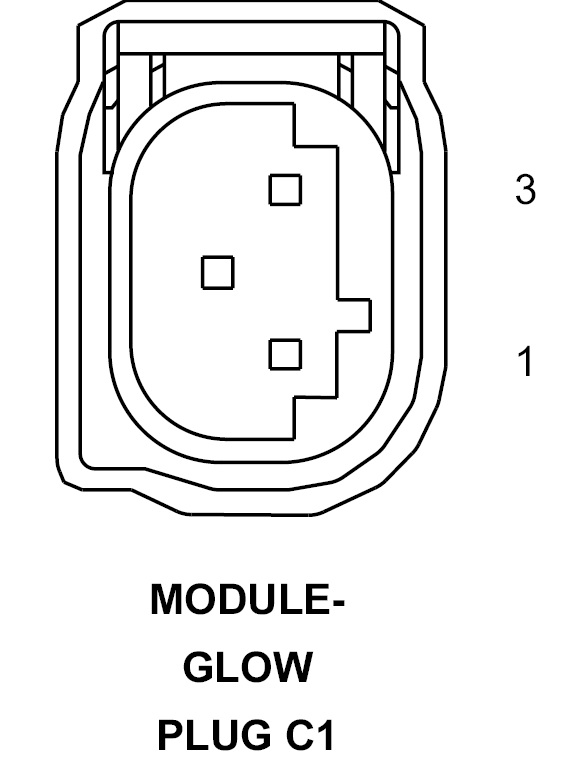

MODULE-GLOW PLUG C1 - 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z902 20BK
GROUND
2
K330 20LB/BR
GLOW PLUG MODULE CONTROL
3
-
-
