Ignition Switch Connector End View

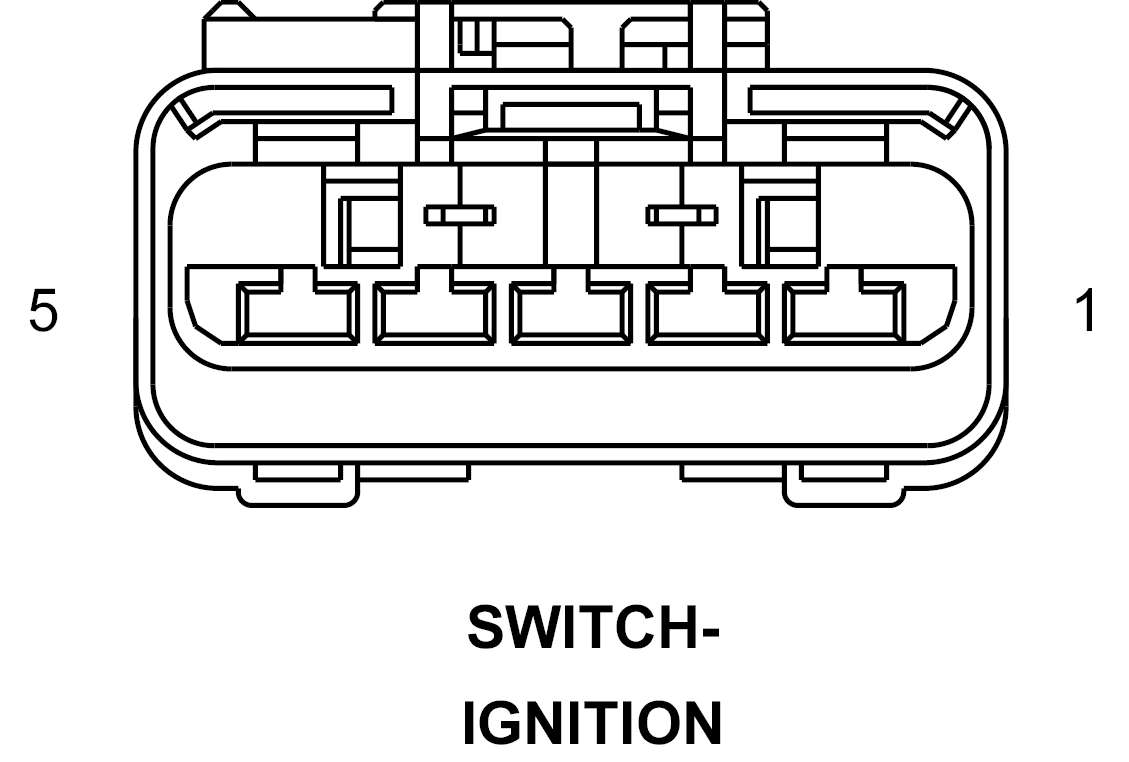

Ignition Switch Connector End View
SWITCH-IGNITION - 5-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G900 20VT/OR
IGNITION SWITCH SENSE RETURN
2
G20 20VT/BR
IGNITION SWITCH SENSE
3
F20 20PK/WT
IGNITION SWITCH OUTPUT (RUN-START)
4
F961 20PK/LB
IGNITION SWITCH OUTPUT (START)
5
A952 20RD
FUSED B(+)
