Input Speed Sensor Connector End View
Input Speed Sensor Connector End View

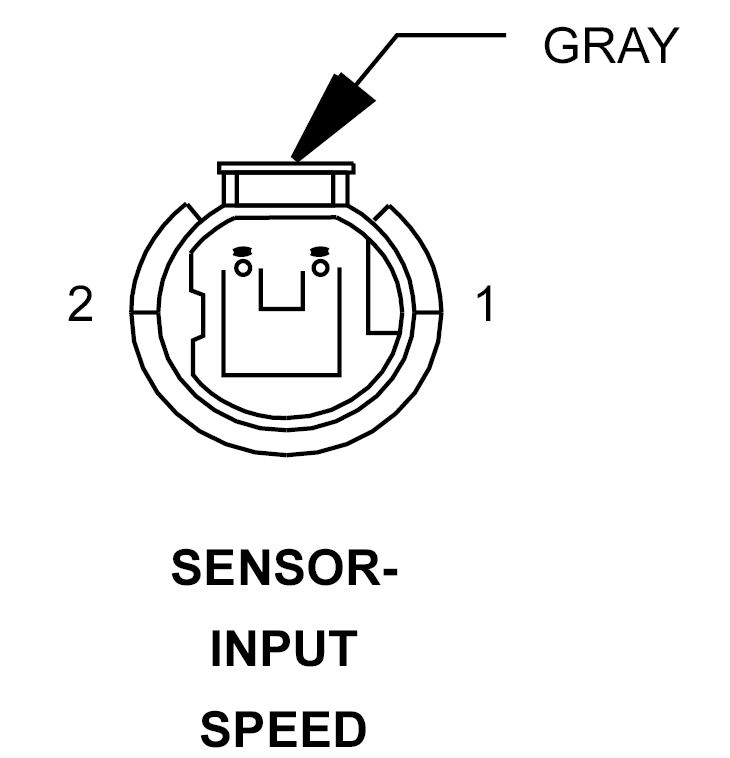

SENSOR-INPUT SPEED - GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T13 20DB/BK
SPEED SENSOR GROUND
2
T52 20RD/BK
INPUT SPEED SENSOR SIGNAL
