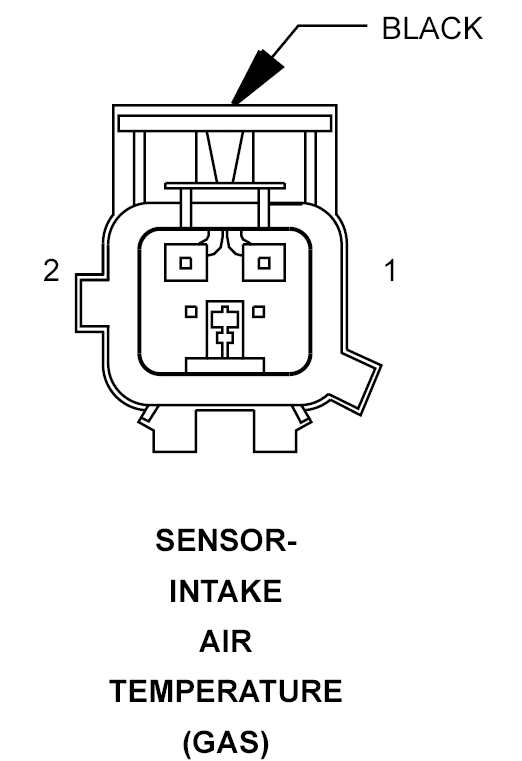

Intake Air Temperature Sensor (Gas) Connector End View
SENSOR-INTAKE AIR TEMPERATURE - BLACK 2-WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K69 20BK/RD |
IAT SIGNAL (1.6L) |
| 1 |
K21 20BK/RD |
IAT SIGNAL (EXCEPT 1.6L) |
| 2 |
K916 20RD |
IAT GROUND (1.6L) |
| 2 |
K900 20BK/LB |
SENSOR GROUND (EXCEPT 1.6L) |
