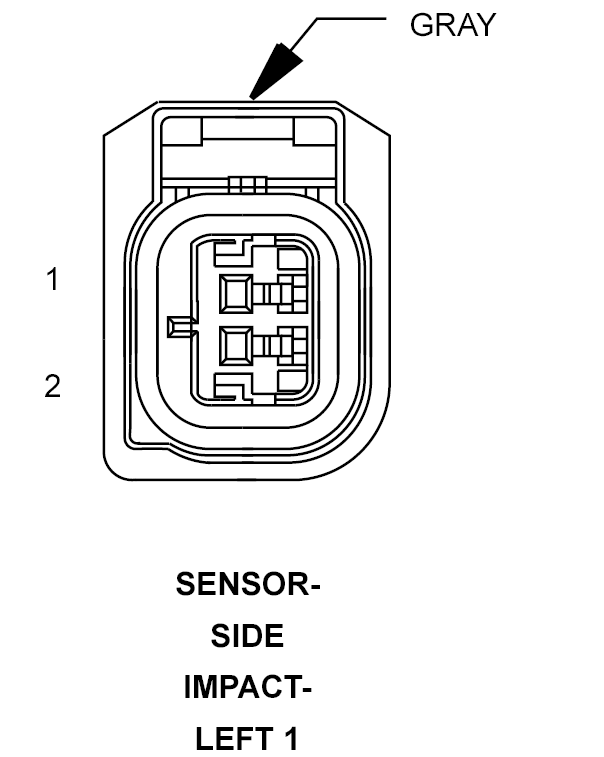

Left Side Impact Sensor 1 Connector End View

SENSOR-SIDE IMPACT-LEFT 1 - GRAY 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	R15 20LG/BR	LEFT SIDE IMPACT SENSOR 1 GROUND
2	R13 20LG/TN	LEFT SIDE IMPACT SENSOR 1 SIGNAL
