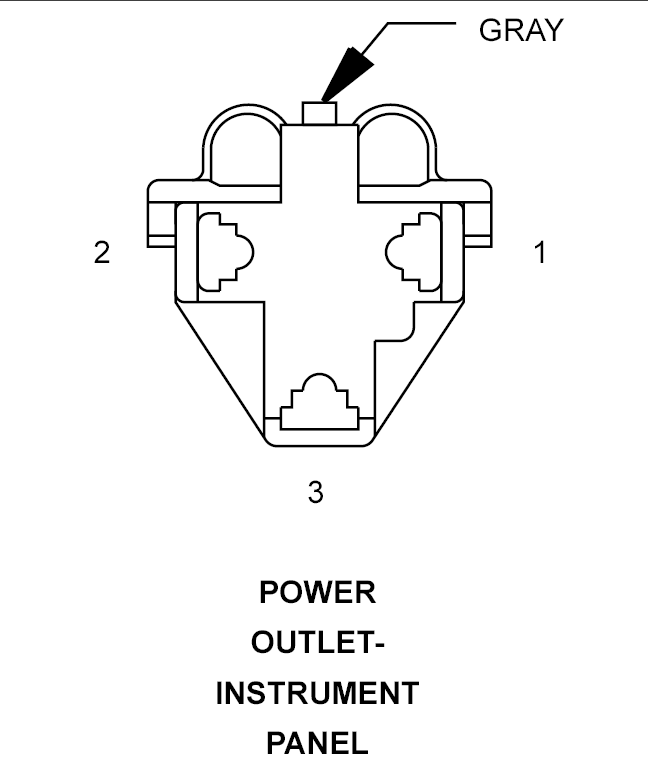

Power Instrument Panel Outlet Connector End View

POWER OUTLET-INSTRUMENT PANEL - GRAY 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F986 16PK/TN	FUSED IGNITION SWITCH OUTPUT (RUN/ACC)
2	-	-
3	Z907 16BK	GROUND
