P0234-OVERBOOST Performance: Notes

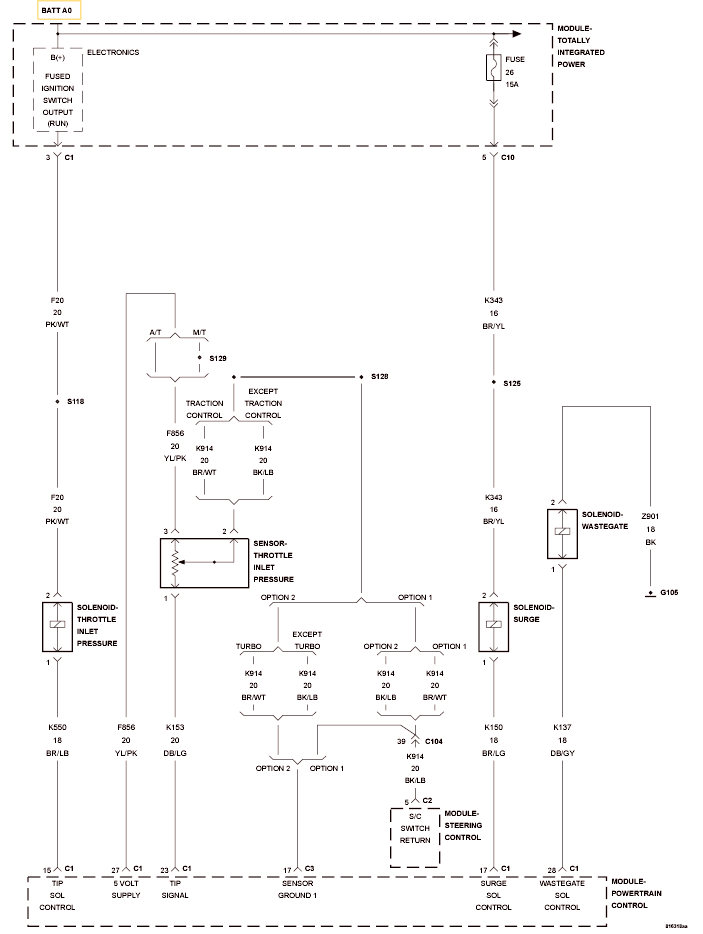

Fig 1: Surge Valve Solenoid Circuit
GC0117128Courtesy of CHRYSLER LLC
