P0440-General EVAP System Failure: Notes

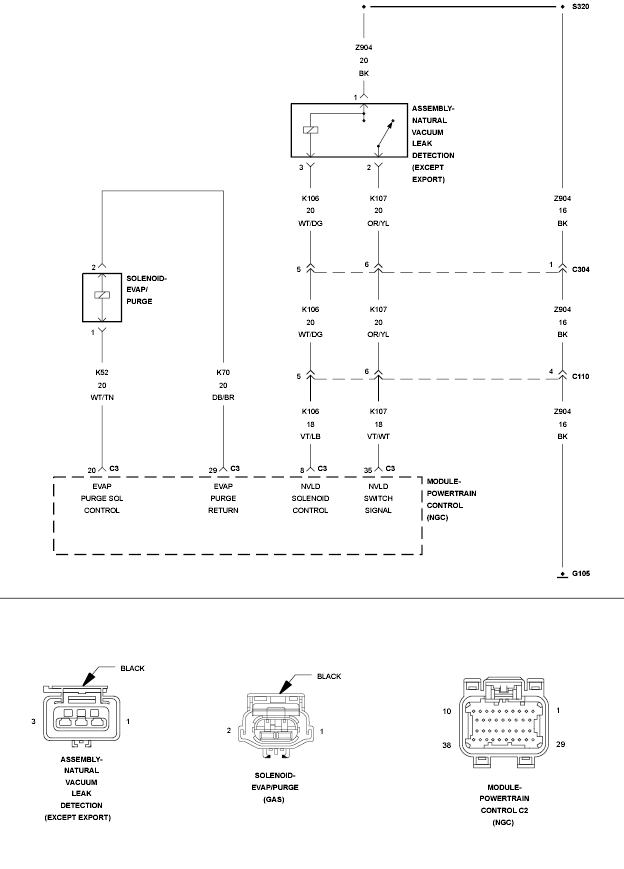

Fig 1: EVAP System Circuit
GC0117249Courtesy of CHRYSLER LLC
