DTCS P0441 To P0532 - Gas
›
P0513-Invalid Skim Key
›
Notes
P0513-Invalid Skim Key: Notes

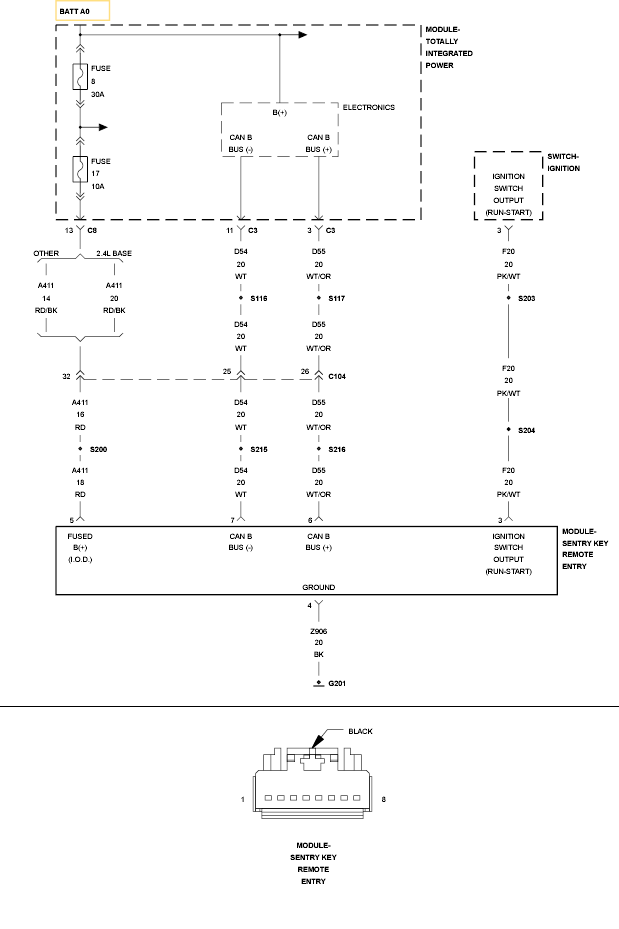

Fig 1: Sentry Key Remote Entry Module Circuit
Courtesy of CHRYSLER LLC
