Home › Chrysler › 2009 › PT Cruiser Base, Automatic › Repair and Diagnosis › Engine Performance › System › DTCS P0533 To P0694 - Gas › P0594-Speed Control Servo Power Circuit › Notes

P0594-Speed Control Servo Power Circuit: Notes

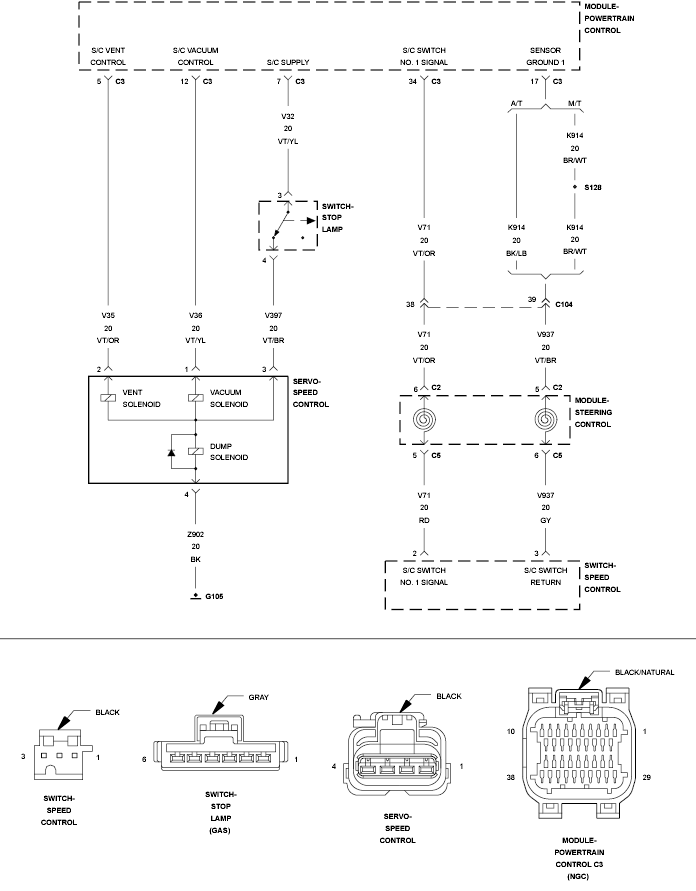

Fig 1: Speed Control Servo Power Circuit
GC0117303Courtesy of CHRYSLER LLC
