P0622-Generator Field Control Circuit: Notes

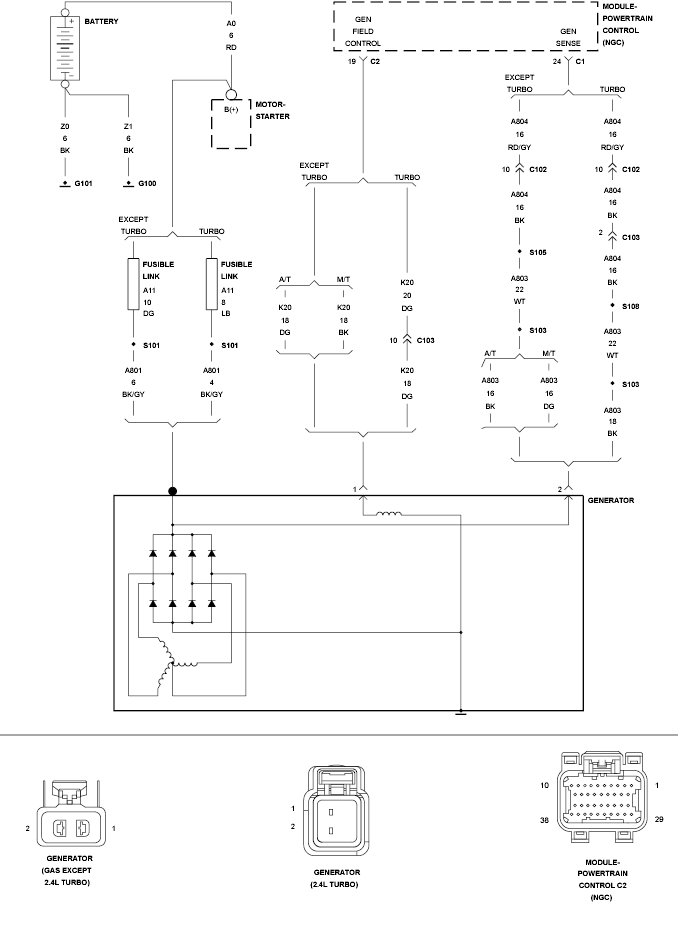

Fig 1: Charging System Circuit
GC0117294Courtesy of CHRYSLER LLC
