Diagnostic Test

ASD RELAY OPERATION
NOTE: The DTC must not be active for the actuator test to operate properly, clear all DTC before continuing.
1. Ignition on, engine not running.
2. With a scan tool, actuate the ASD Relay.
  Is the ASD Relay operating?

  Yes
  - Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Go to step 2
(A14) FUSED B+ CIRCUITS

Fig 1: Checking Fused B+ Circuits
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Remove the ASD Relay.
3. Using a 12-volt test light connected to ground, probe the (A14) Fused B+ circuits in the ASD harness connector.
  Does the test light illuminate brightly?

  Yes
  - Go to step 3
  No
  - Repair the open or short to ground in the (A14) Fused B+ circuits. Inspect and replace any open fuses.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
ASD RELAY
1. Measure the resistance of the ASD Relay Coil.
  Is the resistance between 60 to 80 ohms?

  Yes
  - Go to step 4
  No
  - Replace the ASD Relay.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(K334) ASD RELAY CONTROL CIRCUIT OPEN

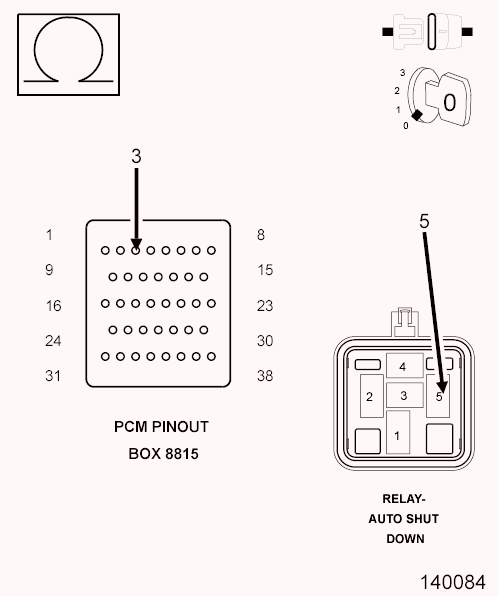

Fig 2: Checking ASD Relay Control Circuit
Courtesy of CHRYSLER LLC
1. Disconnect the PCM harness connectors.
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install PCM Pinout Box 8815 to perform diagnosis.
2. Measure the resistance of the (K334) ASD Relay Control circuit from the ASD harness connector to the appropriate terminals of special tool #8815.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 5
  No
  - Repair the open in the (K334) ASD Relay Control circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(K334) ASD RELAY CONTROL CIRCUIT SHORTED TO GROUND

Fig 3: Checking ASD Relay Control Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (K334) ASD Relay Control circuit in the ASD harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the short to ground in the (K334) ASD Relay Control circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Go to step 6
PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
1. Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Replace and program the Powertrain Control Module per Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
