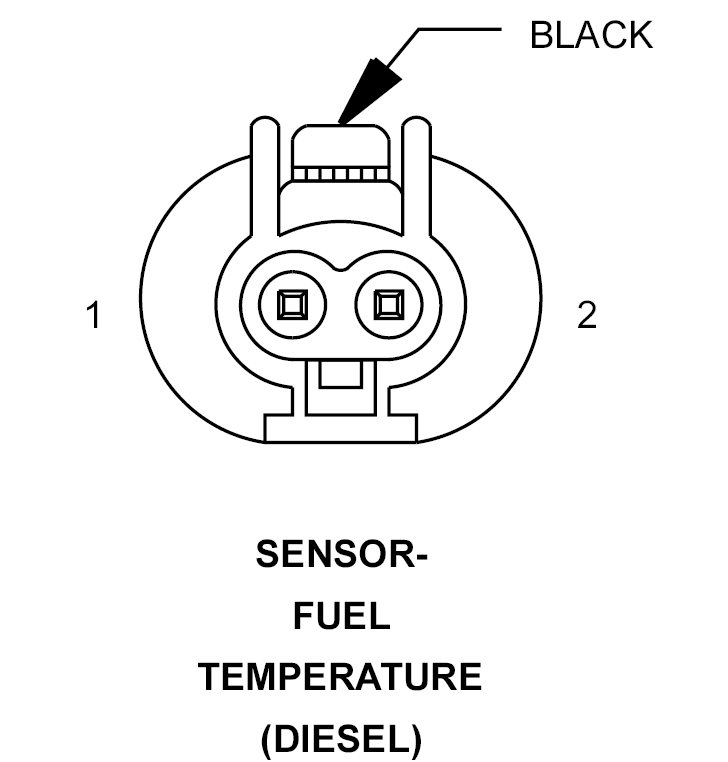

Fuel Temperature Sensor (Diesel) Connector End View

SENSOR-FUEL TEMPERATURE - BLACK 2-WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K900 20LB/LG	SENSOR GROUND
2	K156 20LB/RD	FUEL TEMPERATURE SENSOR SIGNAL
