Intake Air Temperature Sensor (Diesel) Connector End View
Intake Air Temperature Sensor (Diesel) Connector End View

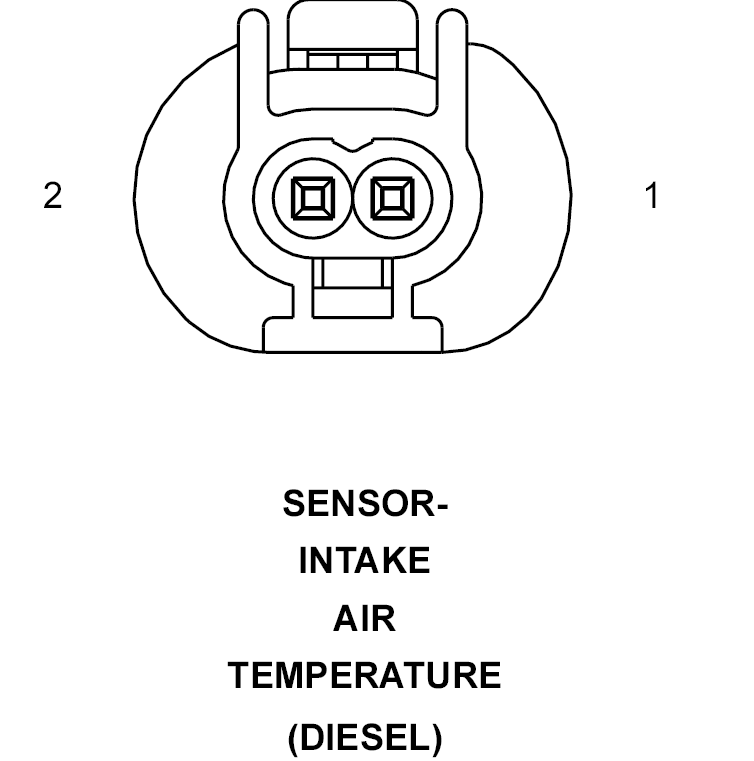

SENSOR-INTAKE AIR TEMPERATURE - 2-WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K900 20BR/VT
SENSOR GROUND
2
K21 20BR/VT
IAT SIGNAL
