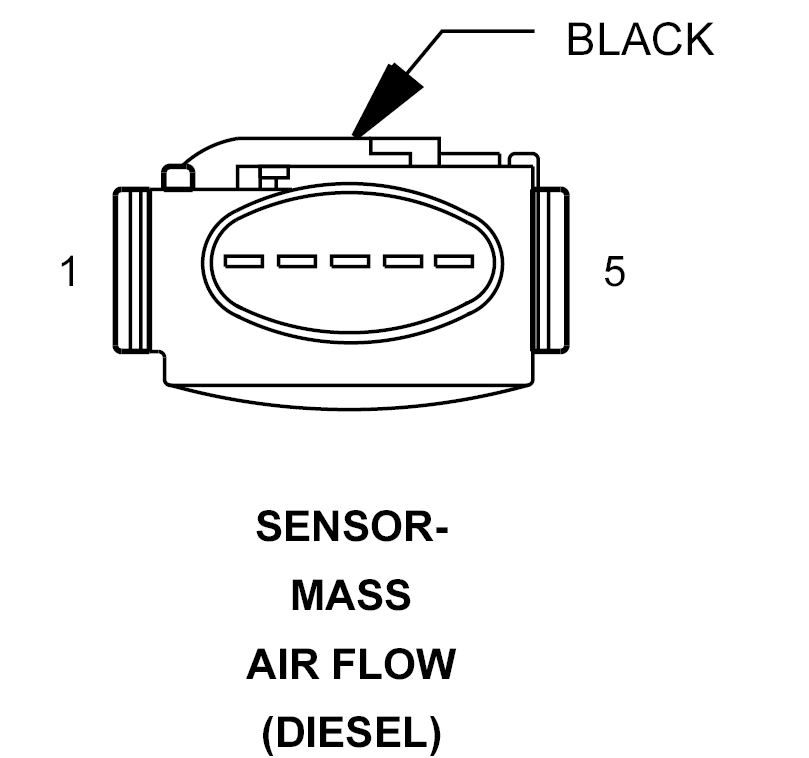

Mass Air Flow Sensor (Diesel) Connector End View
SENSOR-MASS AIR FLOW - BLACK 5-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
K343 18BR |
FUSED ASD RELAY OUTPUT |
| 3 |
K957 20LG |
MAF SENSOR GROUND |
| 4 |
F855 20LB |
MAF 5 VOLT SUPPLY |
| 5 |
K157 20RD/LB |
MAF SIGNAL |
