Right Backup Lamp Connector End View

LAMP-BACKUP-RIGHT - GRAY 2-WAY

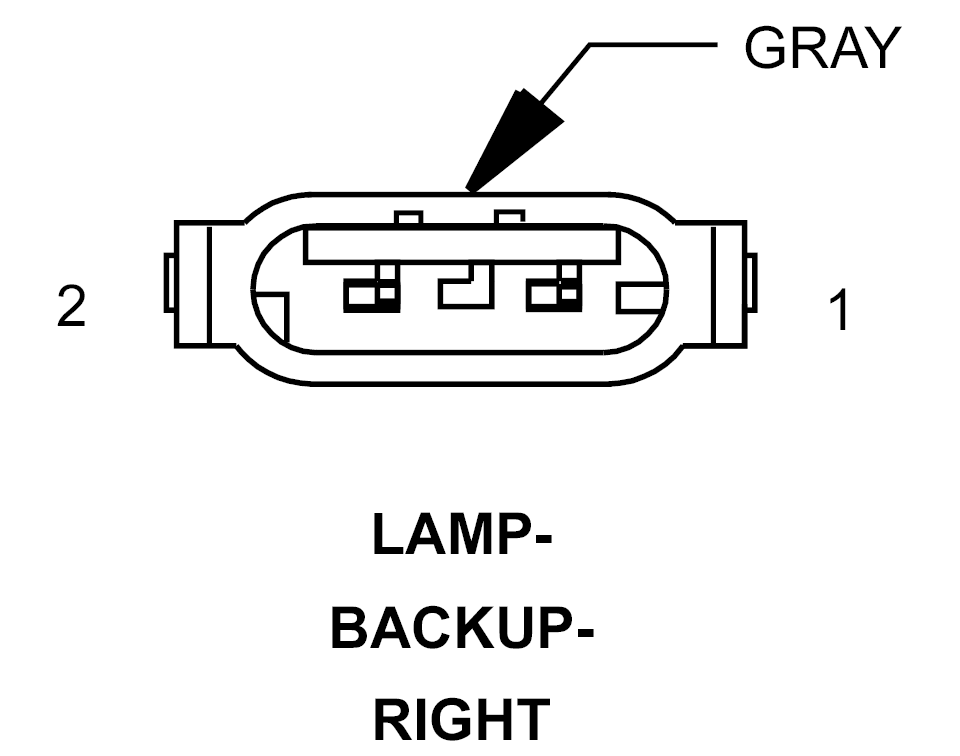

GPT780151Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L1 20VT/BK BACKUP LAMP SWITCH OUTPUT
2 Z908 20BK GROUND
