2.0/2.4L Engine: Turbo

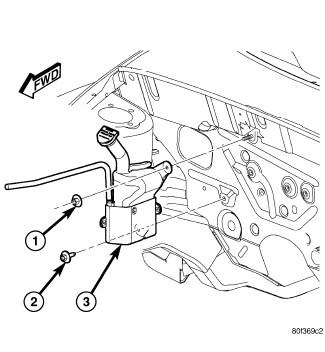

Fig 1: Coolant Recovery Container - 2.4L Turbo
GC0114196Courtesy of CHRYSLER LLC
1 - NUT
2 - SCREW
3 - COOLANT RECOVERY CONTAINER
  1. Install coolant recovery container (3) and tighten fasteners to 4 N.m (35 in. lbs).

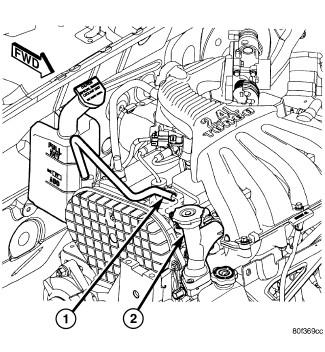

    Fig 2: Overflow Hose Routing - 2.4L Turbo
    GC0114195Courtesy of CHRYSLER LLC
    1 - OVERFLOW HOSE
    2 - COOLANT OUTLET CONNECTOR
  2. Connect throttle and speed control cables to throttle body.
  3. Install throttle cable shield to throttle body.
  4. Connect overflow hose (1) to coolant outlet connector.
  5. Fill container to proper level.
