2.0L/2.4L Engine

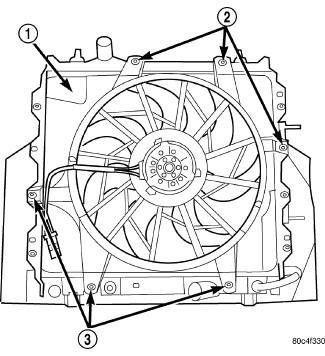

Fig 1: Radiator Fan - Mounting

Courtesy of CHRYSLER LLC

1 - RADIATOR FAN SHROUD

2 - SCREWS

3 - SCREWS

Install the radiator fan into position on the radiator.

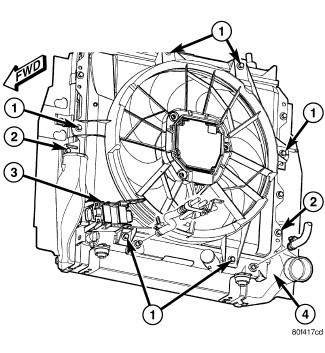

Fig 2: Cooling Module - 2.4L Turbo

Courtesy of CHRYSLER LLC

1 - RADIATOR FAN FASTENERS

2 - CHARGE AIR COOLER FASTENERS

3 - RADIATOR FAN CONNECTOR

4 - CHARGE AIR COOLER

Hand start all radiator fan fasteners.
Tighten all radiator fan retaining screws (1 and 2) to 6 N.m (55 in. lbs.).

Fig 3: Radiator Fan Connector - 2.4L Turbo
Courtesy of CHRYSLER LLC

1 - RADIATOR FAN CONNECTOR

2 - RADIATOR DRAINCOCK
Connect radiator fan electrical connector (1).
Lower vehicle.

Fig 4: Radiator Inlet Neck - 2.4L Turbo
Courtesy of CHRYSLER LLC

1 - FASTENERS

2 - RADIATOR INLET NECK
Turbocharger equipped vehicles: Inspect radiator inlet neck O-ring. Replace if necessary. Install radiator inlet neck (2). Torque fasteners to 6 N.m (55 in. lbs.).

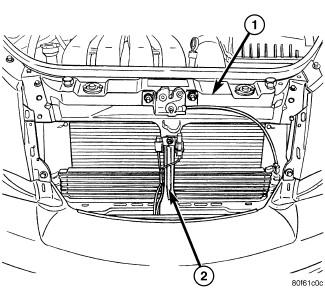

Fig 5: Upper Radiator Closure Panel and Center Brace
Courtesy of CHRYSLER LLC
Connect the upper radiator hose to radiator. Align hose and position clamp so it will not interfere with the engine or the hood.
Install upper radiator closure panel (1) and center brace (2). Refer to Body/Exterior/CROSSMEMBER, Radiator - Installation .
Install grille. Refer to Body/Exterior/GRILLE - Installation .
Install battery tray and battery.
Connect cables to battery.
Fill cooling system. Refer to SYSTEM FILLING - GAS ENGINE .
